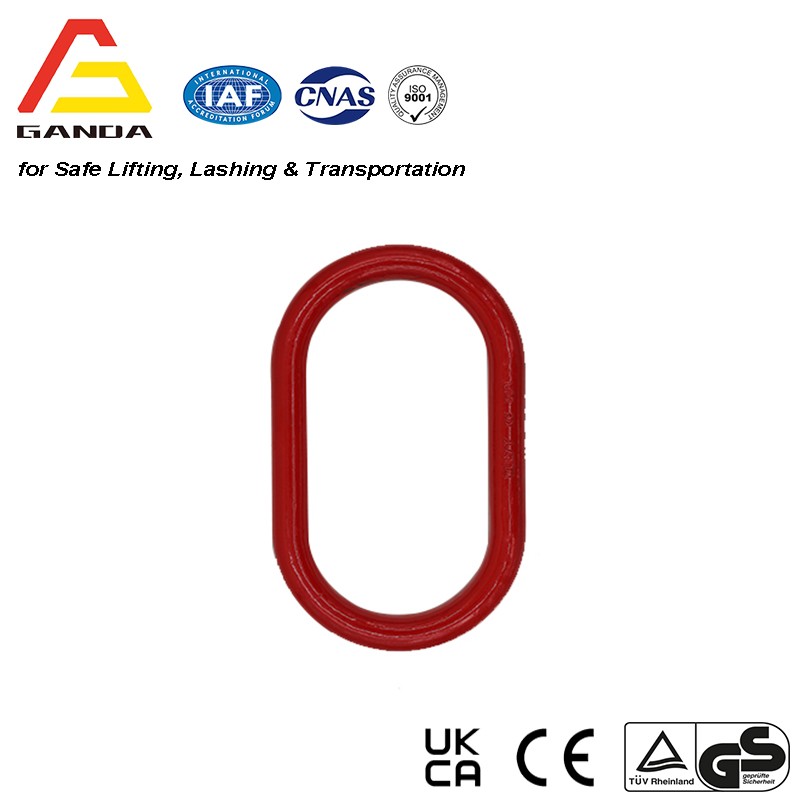

G80 Forged Master Link
Size: 6mm to 45 mm
SF: 4:1
Color: Yellow, Red, Orange
G80 Forged Master Link for Chain Sling Features
● The forged master link is forged by special alloy steel with high intensity and high toughness, and then it is heat treated.
● Each workpiece should pass testing at 2 times of working load limit.
● We should carry out strict sampling and breakage testing for each batch of products and 100% magnetic particle inspection.
● Surface treatment: plastic coating.
● All sizes are forged.
● There will be pressing flat only on request.
● When it is matched with chain: ultimate load is 4 times the Working Load Limit.
● When it is matched with cable wire: ultimate load is 5 times the Working Load Limit.
● Color code: red/yellow/orange
Parameters (Unit: mm)
| Item Code | Weight (kg) | Chain | Working Load Limit | Working Load Limit | Working Load Limit | Dimension(mm) | ||
| A | B | D | ||||||
| 8-GA-91-1/2 | 0.36 | 1/4 | 1.5 | 2.12 | 3.4 | 127±6 | 63.5±5 | 13±1 |
| 5/16 | 2 | 2.8 | ||||||
| 8-GA-91-5/8 | 0.7 | 5/16 | 2 | 2.8 | 4 | 152±6 | 76±5 | 16±1 |
| 3/8 | 3.15 | - | ||||||
| 8-GA-91-3/4 | 0.93 | 3/8 | 3.15 | 4.25 | 5.6 | 140±6 | 70±5 | 19±1 |
| 8-GA-91-7/8 | 1.5 | 3/8 | 3.15 | 4.25 | 6.9 | 160±6 | 90±5 | 22±1 |
| 1/2 | 5.3 | - | ||||||
| 8-GA-91-1 | 2.1 | 1/2 | 5.3 | 7.5 | 11.8 | 178±6 | 89±5 | 25±1 |
| 5/8 | 8 | 11.2 | ||||||
| 8-GA-91-1-1/4 | 4.24 | 5/8 | 8 | 11.2 | 17.7 | 222±7 | 111±6 | 32±1/-2 |
| 3/4 | 11.2 | 16 | ||||||
| 8-GA-91-1-1/2 | 7.17 | 3/4 | 11.2 | 16 | 27.7 | 267±7 | 135±6 | 38±1/-2 |
| 7/8 | 15 | 21.2 | ||||||
| 8-GA-91-1-3/4 | 11.55 | 7/8 | 15 | 21.2 | 38.5 | 305±10 | 152±6 | 45±1/-2 |
| 1 | 21.2 | - | ||||||
| 8-GA-91-2 | 17.2 | 1 | 21.2 | 30 | 46.5 | 355±10 | 178±6 | 51±1/-2 |
| 11/4 | 31.5 | - | ||||||
| 8-GA-91-2-1/4 | 24.5 | 11/4 | 31.5 | 45 | 64.9 | 406±10 | 203±7 | 57±1/-2 |
| 8-GA-91-2-1/2 | 30.9 | - | 72.6 | 406±10 | 203±7 | 63.5±3 | ||
| 8-GA-91-2-3/4 | 39.5 | - | 98.4 | 406±10 | 241±7 | 70±3 | ||
| 8-GA-91-3 | 50.34 | - | 103 | 457±15 | 228±7 | 76±3 | ||
| 8-GA-91-3-1/4 | 65.68 | - | 119 | 508±15 | 254±7 | 82.5±3 | ||
| 8-GA-91-3-1/2 | 90.24 | - | 126 | 610±15 | 305±10 | 89±3 | ||
| 8-GA-91-3-3/4 | 89.27 | - | 152 | 508±15 | 254±7 | 95±3 | ||
| 8-GA-91-4 | 103.43 | - | 169 | 508±15 | 254±7 | 102±3 | ||
