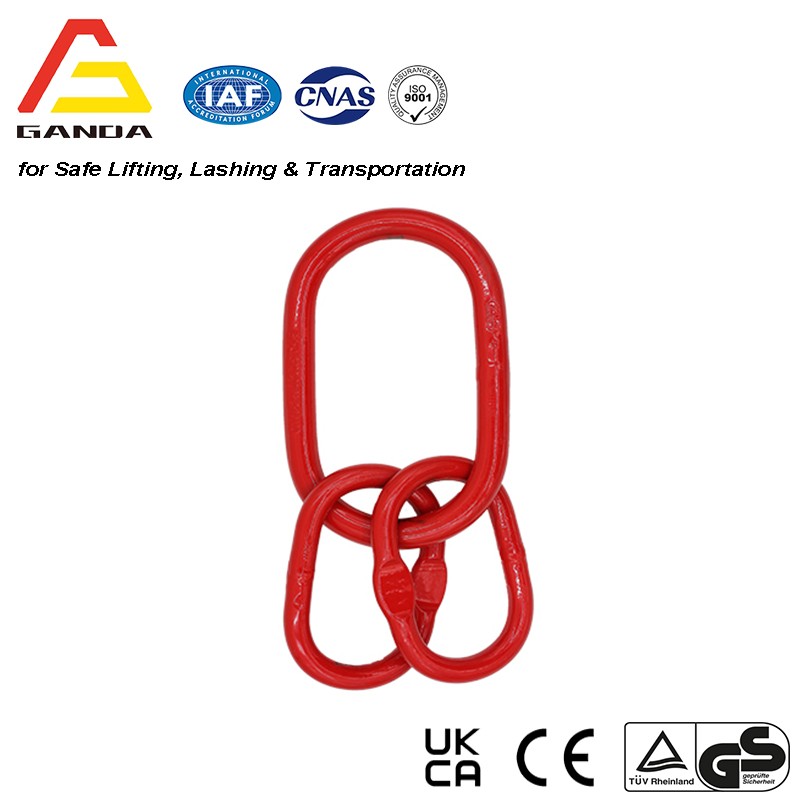

G80 Forged Master Link Assembly
WLL: 3,15t to 67t
SF: 4:1 for Chain
SF: 5:1 for Wire Rope
Color: Yellow, Red, Orange
G80 Forged Master Link Assembly for Sling Features
● Main ring: forged; sub-ring: welded.
● The main ring is forged.
● The pressing flat is for use with SLR002-G80 OMEGA LINK.
● There will be pressing flat only on request.
● When it is matched with chain: ultimate load is 4 times the Working Load Limit.
● When it is matched with cable wire: ultimate load is 5 times the Working Load Limit.
● Color code: red/yellow/orange

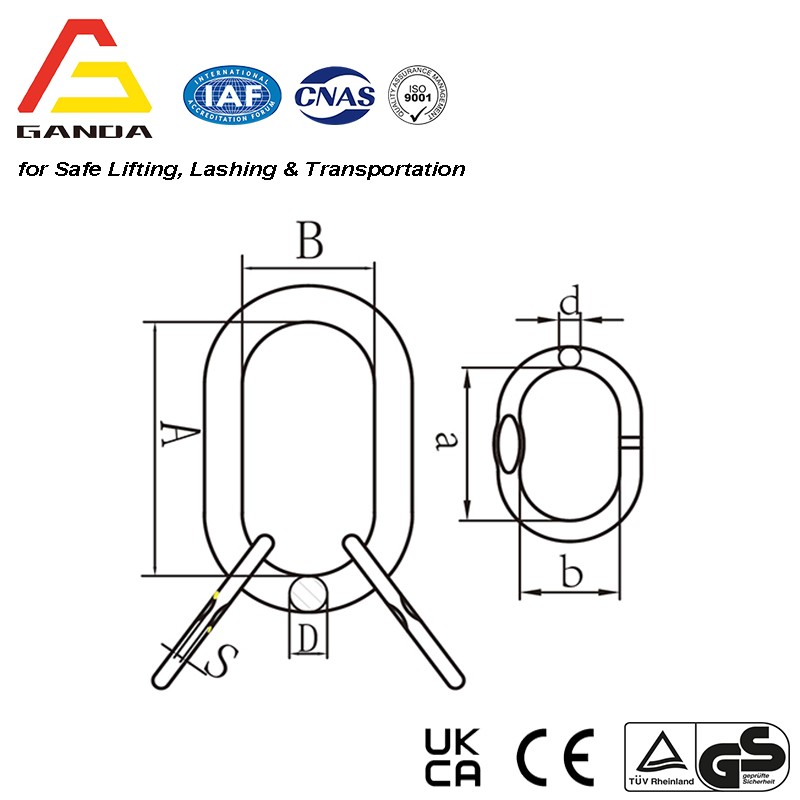

Parameters (Unit: mm)
| Item Code | Weight (kg) | Chain | Working Load Limit | Working Load Limit | Dimension(mm) | |||||
| A | B | D | a | b | d | |||||
| 8-GA-92-3/4 | 1.55 | 1/4 | 3.15 | 5.6 | 140±6 | 70±5 | 20±1 | 85±5 | 40±3 | 14±1 |
| 5/16 | 4.25 | |||||||||
| 8-GA-92-7/8 | 2.18 | 5/16 | 4.25 | 6.9 | 160±6 | 95±5 | 22±1 | 85±5 | 40±5 | 14±1 |
| 3/8 | 6.7 | |||||||||
| 8-GA-92-1 | 3.29 | 3/8 | 6.7 | 11.8 | 178±6 | 89±5 | 25±1 | 100±5 | 60±5 | 18±1 |
| 8-GA-92-1-1/4 | 7.18 | 1/2 | 11.2 | 17.7 | 222±7 | 110±6 | 32±1/-2 | 100±5 | 60±5 | 22±1 |
| 5/8 | 17 | |||||||||
| 8-GA-92-1-1/2 | 12.91 | 5/8 | 17 | 27.7 | 267±7 | 135±6 | 38±1/-2 | 180±6 | 100±5 | 30±1/-2 |
| 3/4 | 23.6 | |||||||||
| 8-GA-92-1-3/4 | 21.25 | 3/4 | 23.6 | 38.5 | 305±10 | 152±6 | 45±1/-2 | 180±6 | 100±5 | 32±1/-2 |
| 7/8 | 31.5 | |||||||||
| 8-GA-92-2 | 30.34 | 7/8 | 31.5 | 46.5 | 356±10 | 178±6 | 50±1/-2 | 180±6 | 100±5 | 38±1/-2 |
| 8-GA-92-2-1/2 | 64.4 | 1 | 45 | 72.6 | 406±10 | 203±6 | 64±1/-2 | 355±8 | 178±6 | 51±1/-2 |
| 8-GA-92-2-3/4 | 89 | 11/4 | 67 | 98.4 | 406±10 | 214±6 | 70±1/-2 | 406±8 | 203±6 | 57±1/-2 |
