  • G100 Container Lifting Ring
  • G100 Container Lifting Ring
G100 Container Lifting RingG100 Container Lifting Ring

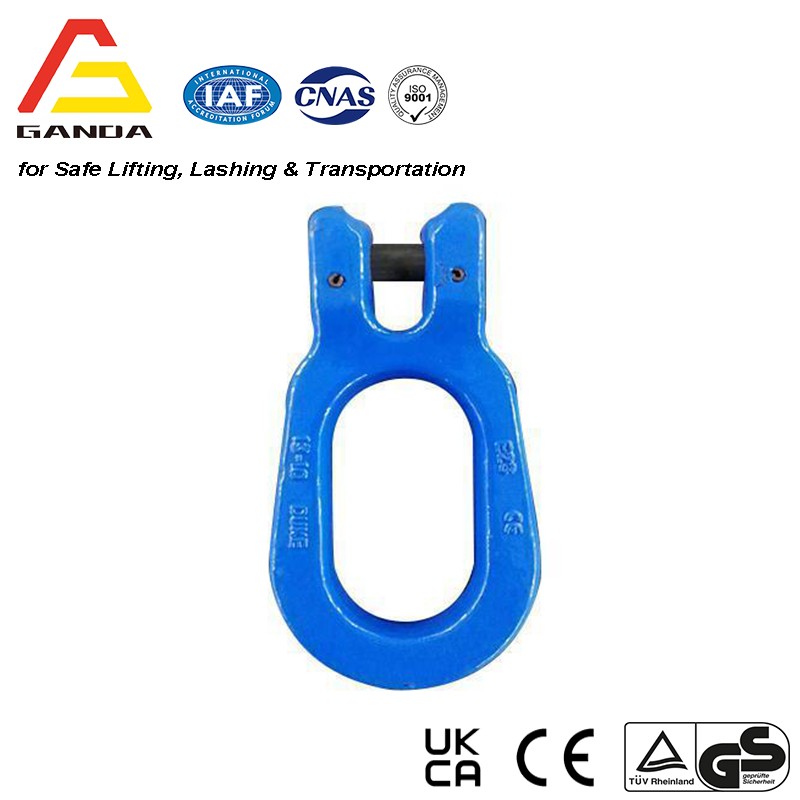

G100 Container Lifting Ring

G100 Container Lifting Ring
Tamanho: 13mm
FS: 4:1 para Corrente
FS: 5:1 para Cabo de Aço
Cor: Azul

Features
● It is available in G80;
● It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated;
● Each workpiece should pass testing at 2.5 times of working load limit;
● We should carry out sampling and 20000 times of fatigue testing;
● We should carry out strict sampling and breakage testing for each batch of products;
● We should carry out 100% magnetic powder flaw detection;
● 100% of the pin should be tested to ensure that they have the same hardness;
● Surface treatment: Power plastified

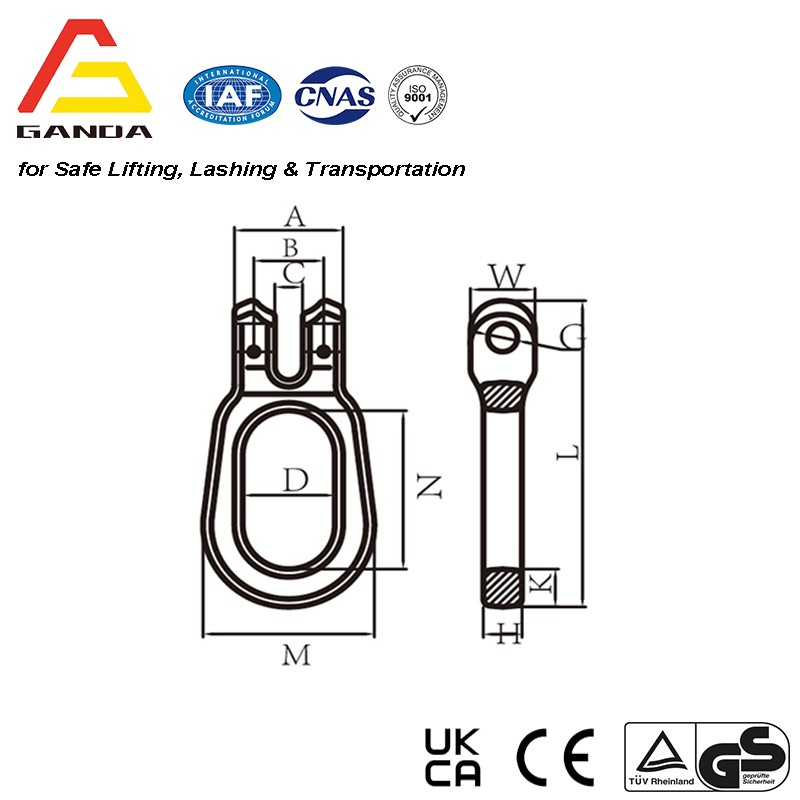

Parameters (Unit: mm)

Item codeWEIGHT (KG)Working load limit (t)Breaking load(t)A±1B±0.5C±1D±1M±1.5N±2H±1K±0.5L±1.5G±2E±1
GA-1033-131.366.726.85938155093902121.51741635
