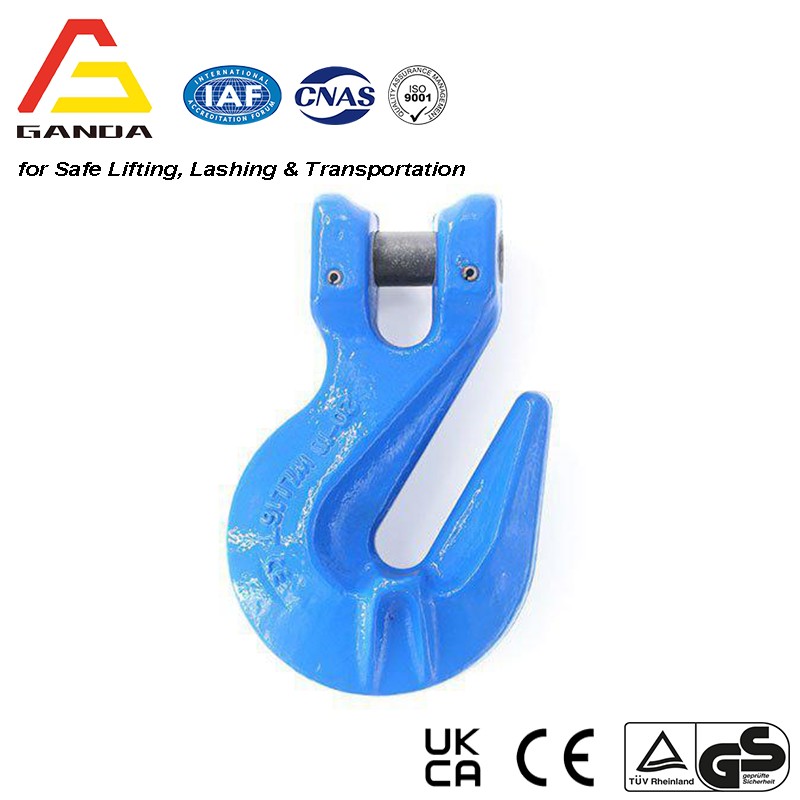

G100 Alloy Steel Clevis Grab Hook

G100 Alloy Steel Clevis Grab Hook
Tamanho: 6mm to 22mm
FS: 4:1 para Corrente
FS: 5:1 para Cabo de Aço
Cor: Azul

Features
● It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated;
● It can be matched with G100 chains;
● The performance is increased by 25% compared with G80 products;
● Each workpiece should pass testing at 2.5 times of working load limit;
● We should carry out sampling and 20000 times of fatigue testing;
● We should carry out strict sampling and breakage testing for each batch of products;
● We should carry out 100% magnetic powder flaw detection;
● 100% of the pin should be tested to ensure that they have the same hardness;
● Surface treatment: plastics spraying;
● Color code: Blue RAL5015.

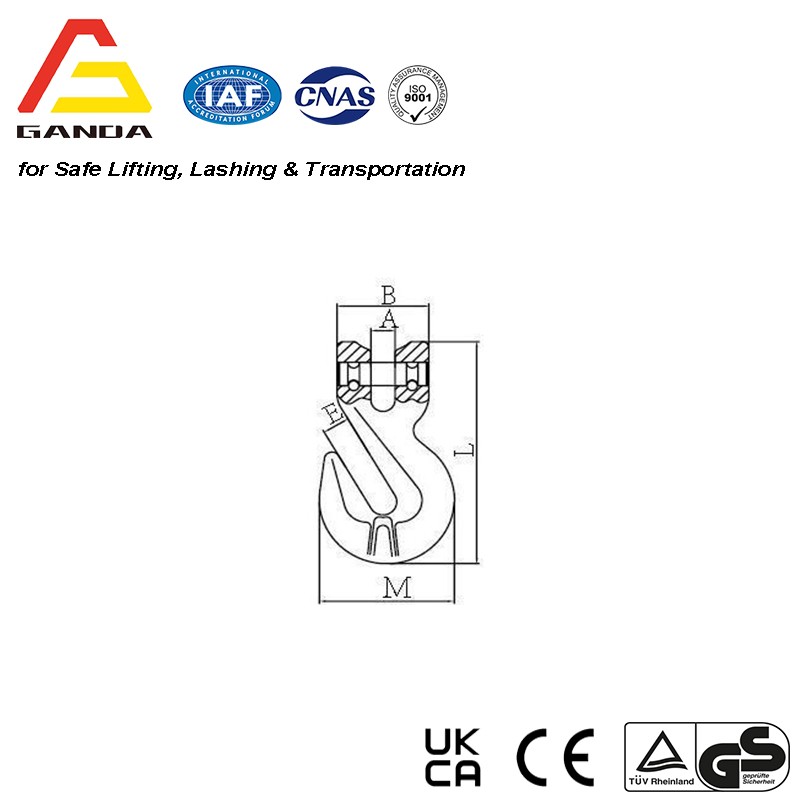

Parameters (Unit: mm)

Item code	Weight (kg)	Working load limit (t)	Breaking load (t)	A±0.5	B±1.5	E±1	M±2	L±2
10-GA1009-06	0.22	1.4	5.6	7.5	32	8	43.5	75
10-GA1009-08	0.34	2.5	10	9.5	36	10.8	53	91.5
10-GA1009-10	0.82	4	16	12	46	13.5	72	126
10-GA1009-13	1.75	6.7	26.8	15	59	16.5	96	163.5
10-GA1009-16	2.88	10	40	17.5	70	19.2	112.5	183.5
10-GA1009-20	4.84	16	64	24	85	24	143	224
10-GA1009-22	8.3	19	76	27	100	27	160.5	262
