  • Deep Throat Alloy Steel Eye Grab Hook
  • Deep Throat Alloy Steel Eye Grab Hook
Deep Throat Alloy Steel Eye Grab HookDeep Throat Alloy Steel Eye Grab Hook

Deep Throat Alloy Steel Eye Grab Hook

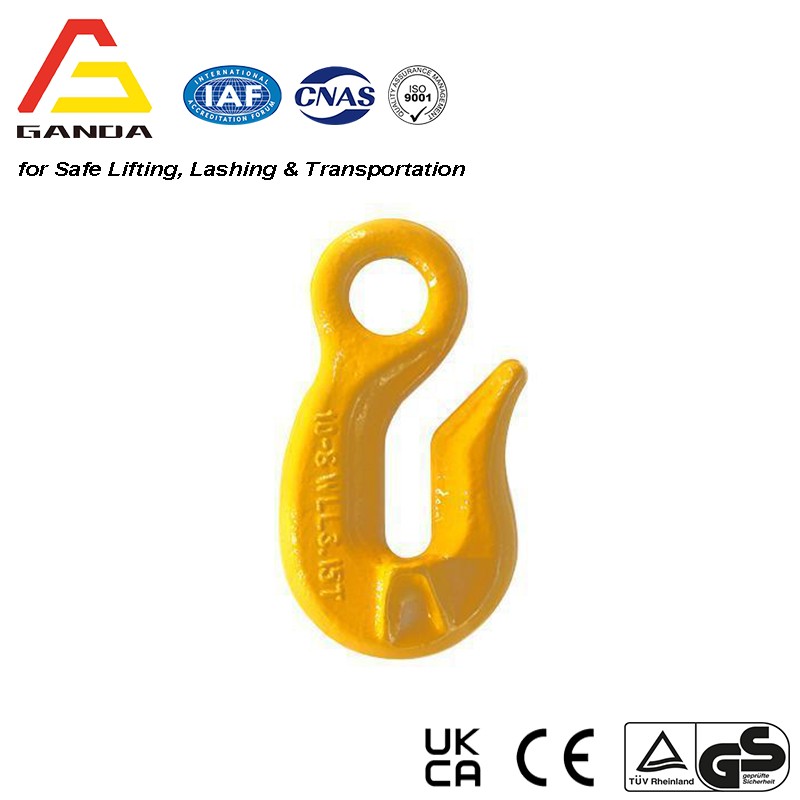

Deep Throat Alloy Steel Eye Grab Hook
6 mm a 10 mm
FS: 4:1
Cor: Amarelo

Ultimate load is 4 times the Working Load Limit.
The working load listed on the table is under the situation of side pulling.

Features
● It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated;
● It can be matched with sling and G80 chains which can meet the standard EN818-2;
● Each workpiece should pass testing at 2.5 times of working load limit;
● We should carry out sampling and 20000 times of fatigue testing;
● We should carry out strict sampling and breakage testing for each batch of products;
● We should carry out 100% magnetic powder flaw detection;
● 100% of the pin should be tested to ensure that they have the same hardness;
● Surface treatment: plastics spraying.
● Color code: red RAL3020/yellow RAL1003.

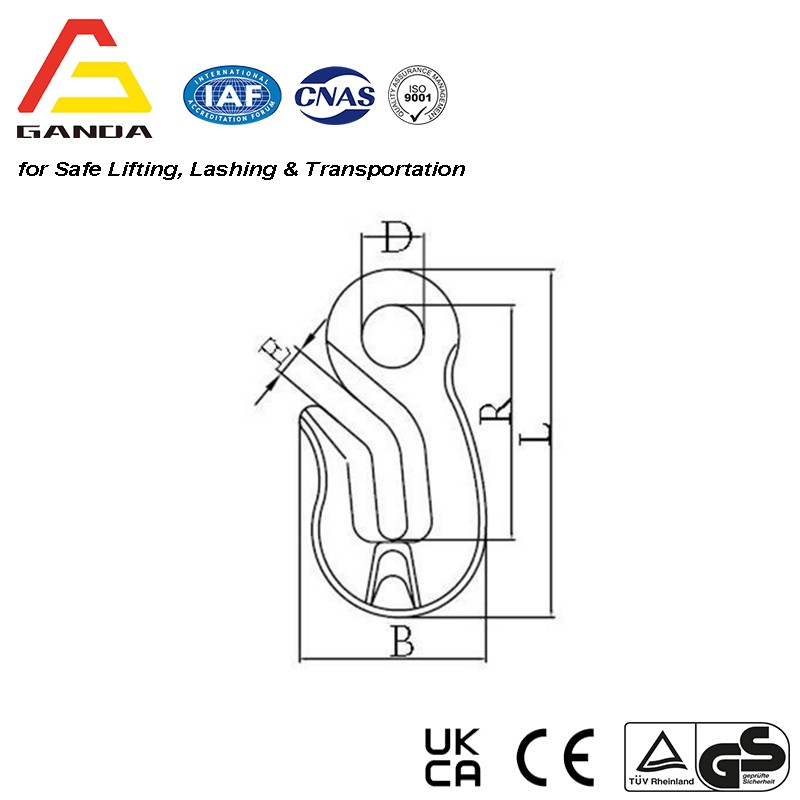

Parameters (Unit: mm)

Item CodeWeight (kg)Woring Load Limit (t)Breaking Load (t)D±1E±0.3B±1.2R±1.5L±1.5
8-GA-141-60.161.124.48157455683
8-GA-141-7/80.3528169.65274.3106.5
8-GA-141-100.753.1512.621136684.5124.5


Anterior strip:Forged D Ring with Wrap Próximo strip:Alloy Steel Eye Foundry Hook
