  • Alloy Steel Container Lifting Lug
  • Alloy Steel Container Lifting Lug
Alloy Steel Container Lifting LugAlloy Steel Container Lifting Lug

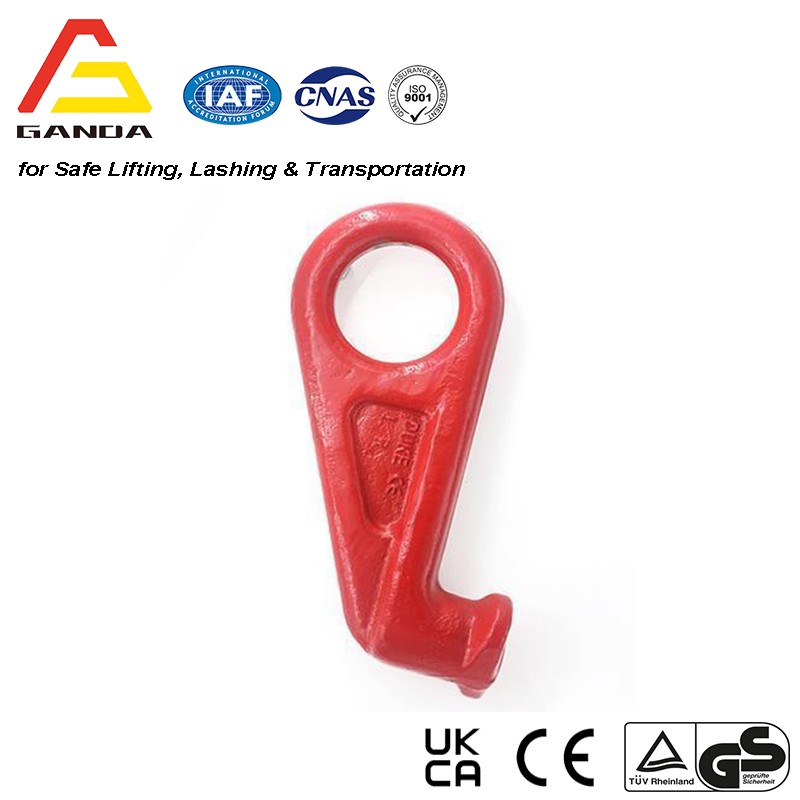

Alloy Steel Container Lifting Lug

Alloy Steel Container Lifting Lug
FS: 4:1
Cor: Vermelho,

Features
● It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated;
● It can be matched with sling and G80 chains which can meet the standard EN818-2;
● Each workpiece should pass testing at 2.5 times of working load limit;
● We should carry out sampling and 20000 times of fatigue testing;
● We should carry out strict sampling and breakage testing for each batch of products;
● We should carry out 100% magnetic powder flaw detection;
● Surface treatment: plastics spraying.
● Color code: red RAL3020/yellow RAL1003.

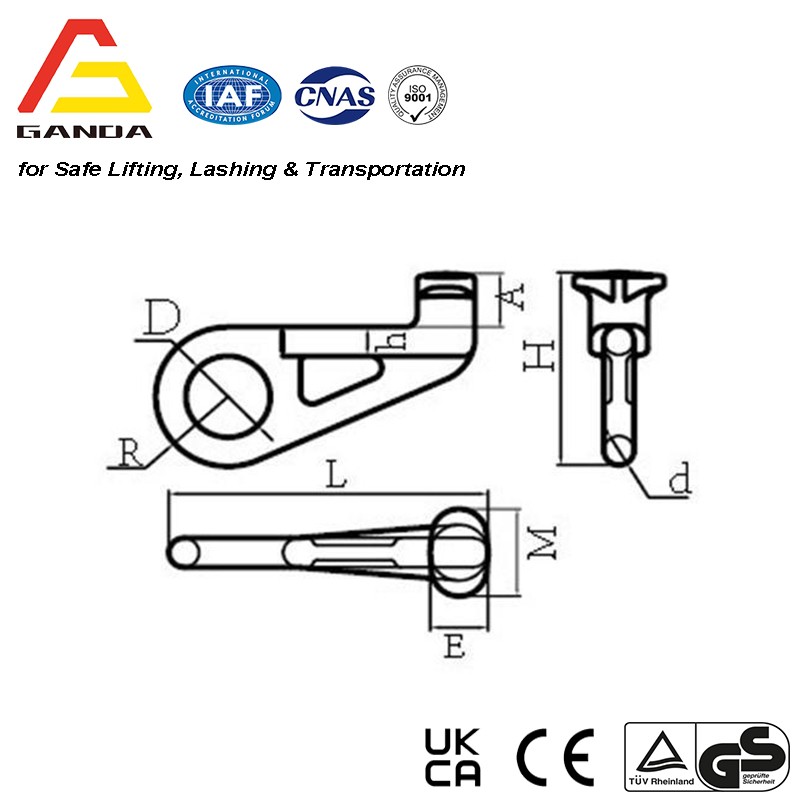

Parameters (Unit: mm)

Item CodeWeight (kg)Woring Load Limit (t)Breaking Load (t)A±1M±1H±2h±1E±1R±1D±1d±1L±2
GA-633-S412.55046751662548607025265
