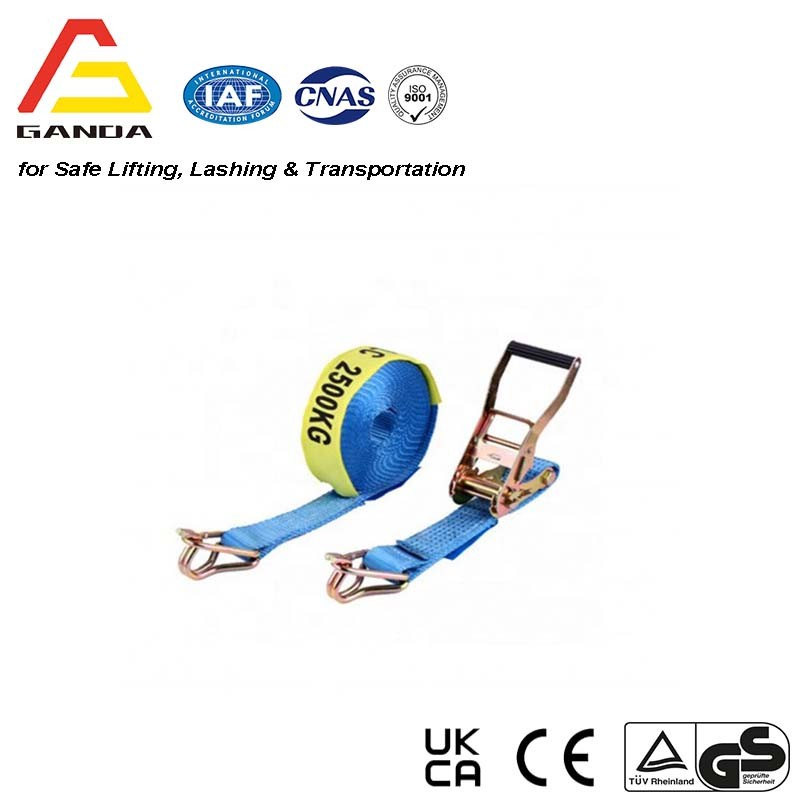

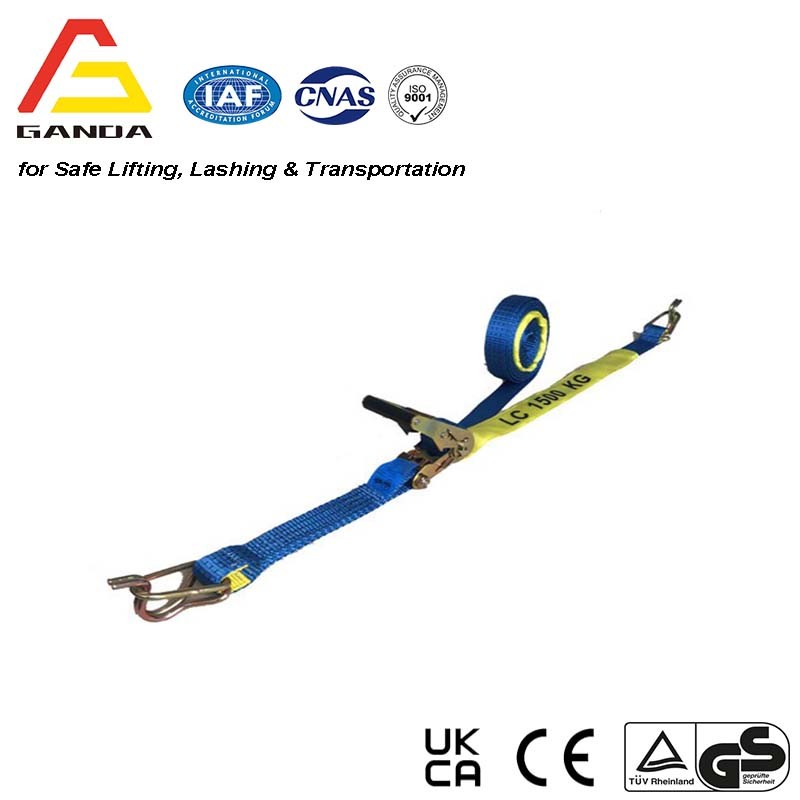

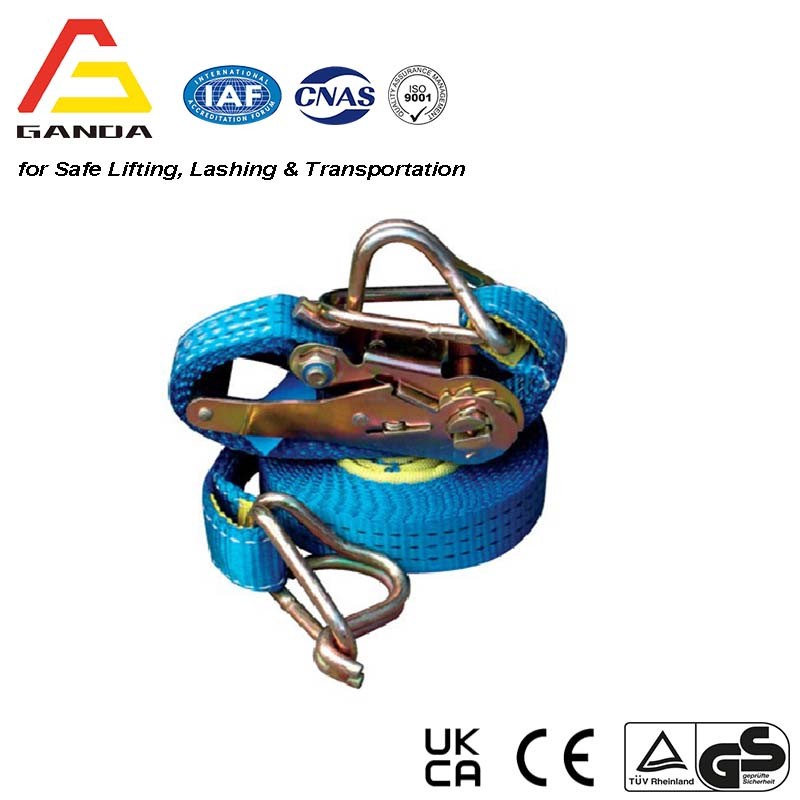

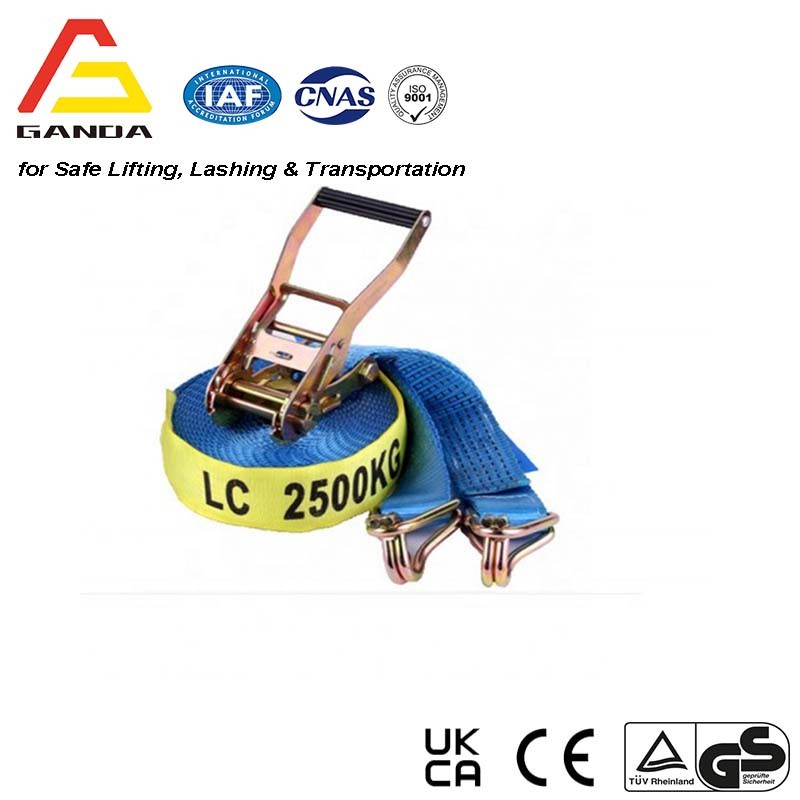

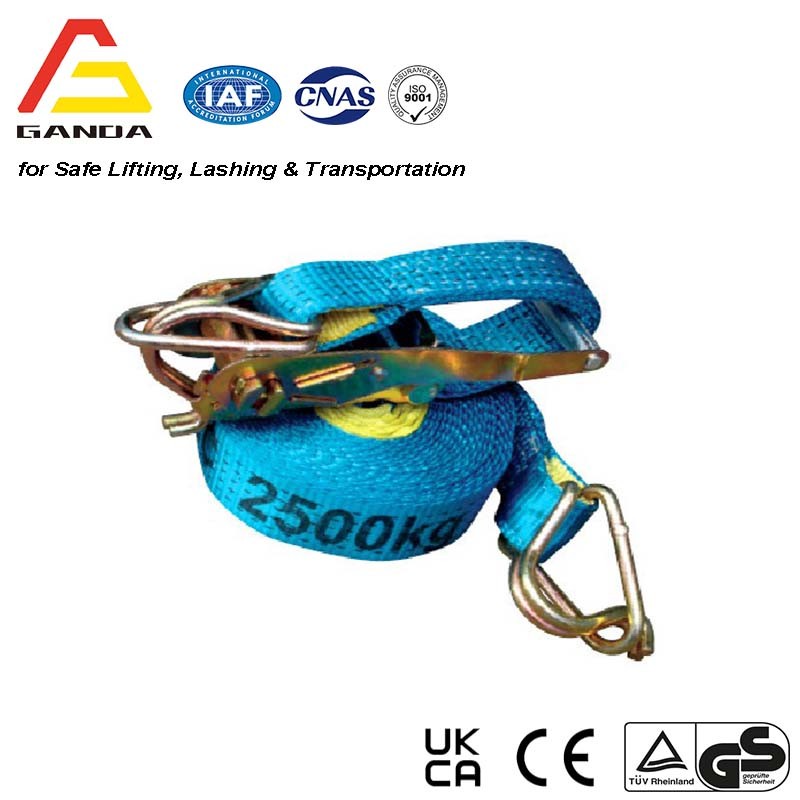

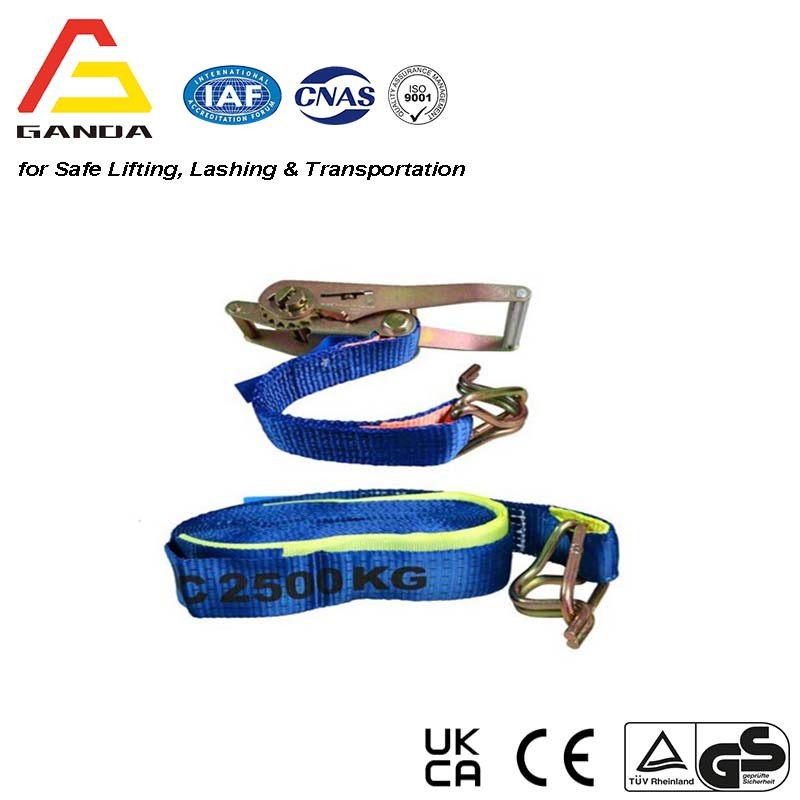

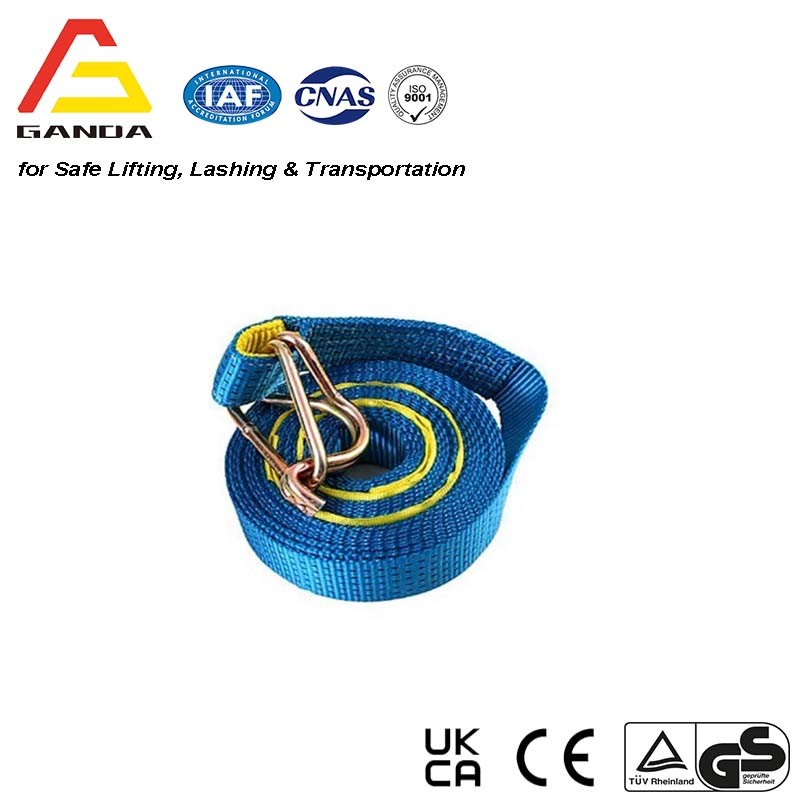

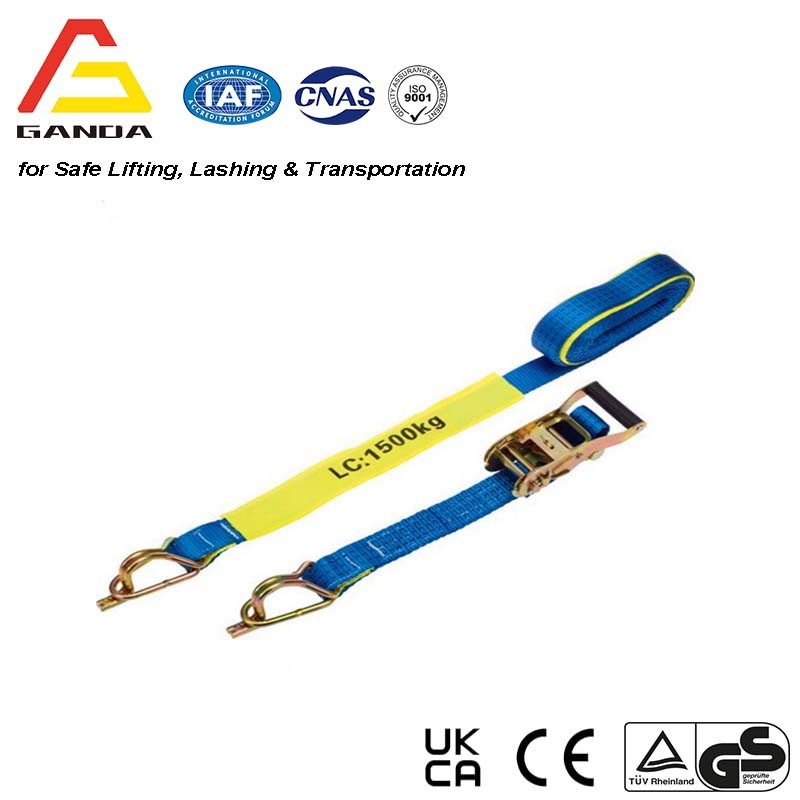

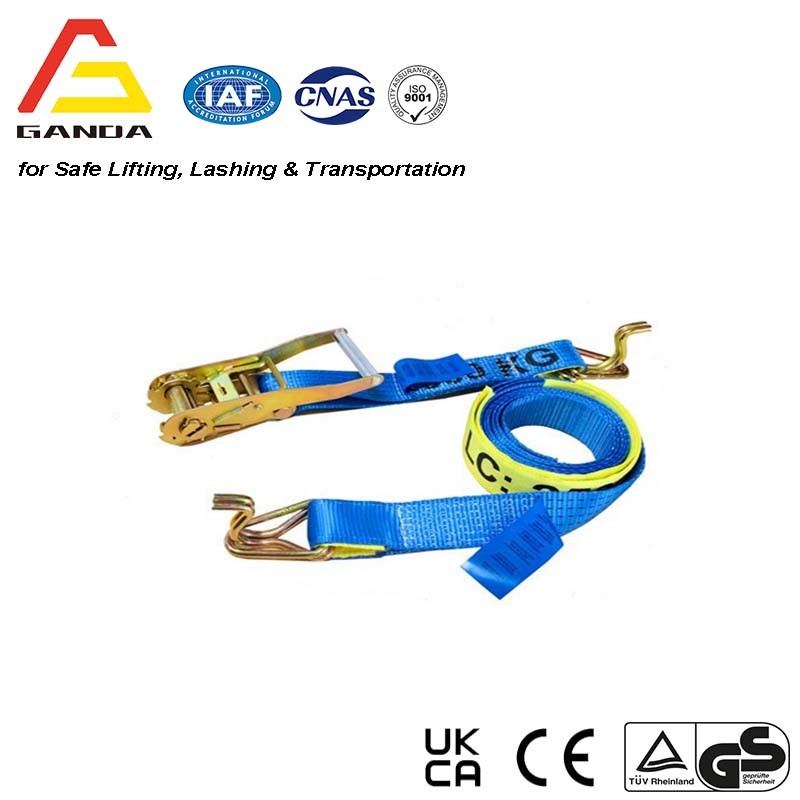

Ratchet Webbing Tie Down

Standard: AS 4380
Width: 50MM
Lashing Capacity: 2.5T
Breaking Strength: 5T
Length: 9m, 10m, 12m
Endfitting: Hook & Keeper
Any Color is Available upon Request
Low Elongation

Webbing Tie-Downs to AS 4380

Ratchet Webbing Tie-Downs are now widely used in the transport industry. Webbing tie-downs are light-weight, easy to handle and easy to use. Although not as durable as Grade 70 chain and components webbing tie-downs are kind on the cargo and are well suited to many types of lashing applications. Webbing lashings are more elastic than chains and therefore retain more tension than a chain assembly if the load moves or settles during transport.

Advantages of Ratchet Webbing Tie-Downs include:

·        Less Loading Time.

·        Quicker turnaround time.

·        Less Damage to cargo or paintwork.

·        Maximum pay load.

·        Adaptability.

·        On-board storage.

G&A Ratchet Webbing Tie-Downs are manufactured to AS 4380.

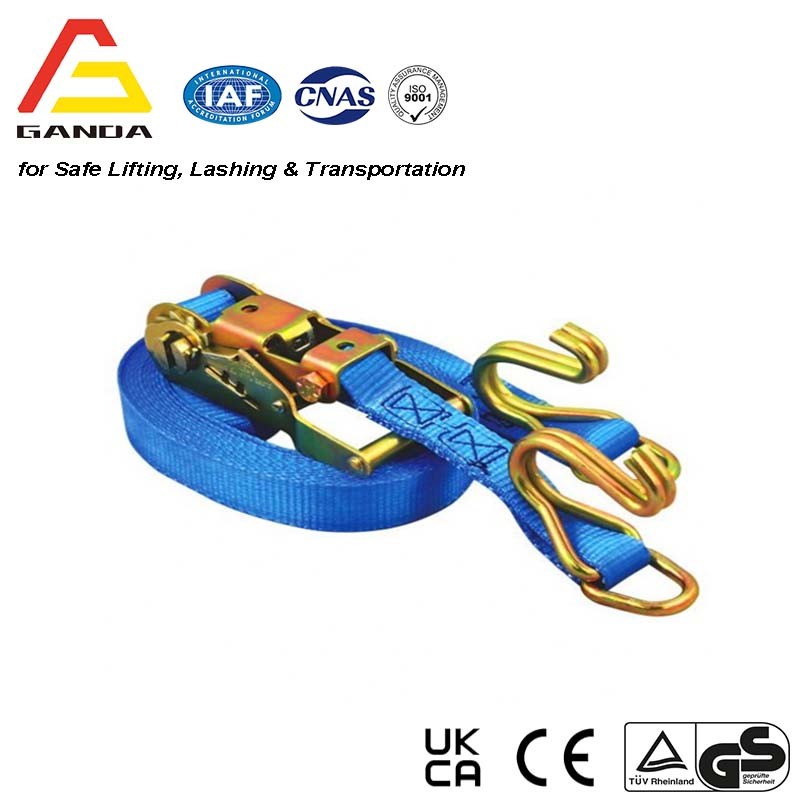

25mm tie downs have J hooks wheras 35, 50 and 75mm feature hook and keeper end fittings for high strength and security to hold onto the tie rail.


They are available in a large variety of configurations of different ratchets of various capacities and end fittings. Pictures shown here are only indicative and not exhaustive.

Width from 25MM to 75MM
Breaking Strength from 500kgs to 10,000kgs
The End Fitting is Hook with Keeper
Low Elongation
Any Color is Available upon Request


WidthSTANDARD LENGTHEND FITTINGSM. B. S.
75MM0.5 + 8.5MHook & Keeper10, 000KG
35MM0.5 + 8.5MHook & Keeper3, 000KG
25MM0.4 + 4.6MHook & Keeper1,000KG
