Vertical Lifting Clamp

Model: CDH
-Capacity: 0.5t to 30t
-CE, GS Certificate
-1 year's guaranatee
- Complies with Ec Council Directive 2006/42/EC Machinery, ASME B30.16, AS 1418.2.ANSI / ASME B30.11 and B30.17

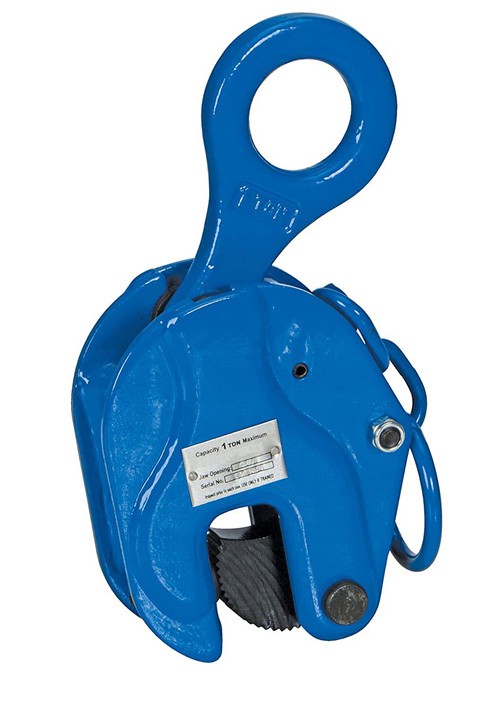

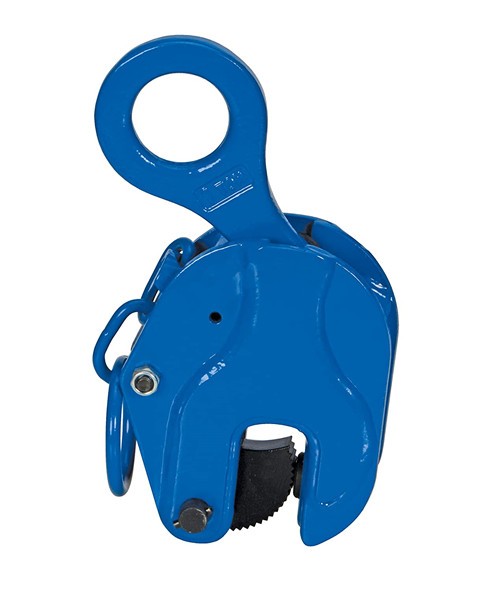

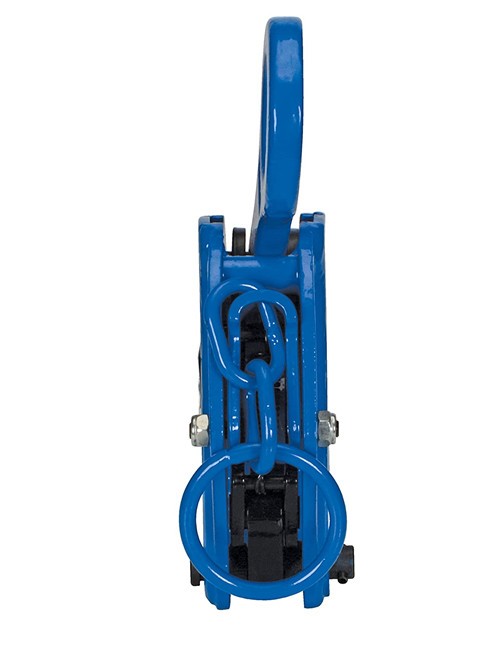

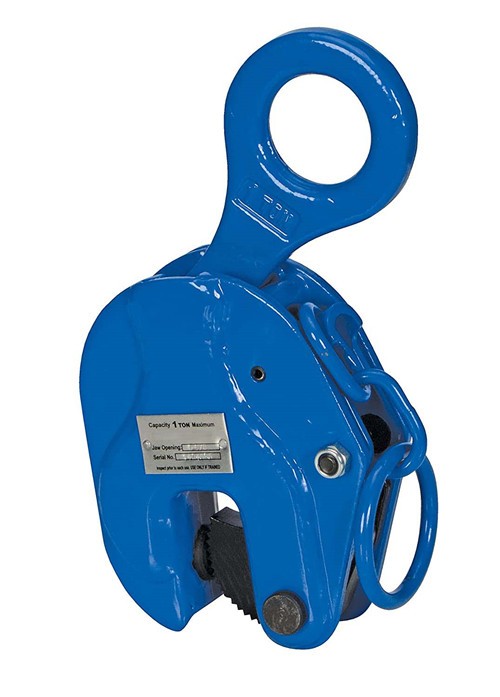

Vertical Lifting Clamp CDH

-Standard design clamp for vertical lifting of steel plates and steel structures.
-The spring-loaded tightening lock mechanism assures a positive initial clamping force.
-Clamps are equipped with a safety mechanism, ensuring the clamp does not slip when lifting force is applied and when load is being lowered.
-High-frequency quenching of die-forged special alloy steels gives greater durability to the cam.

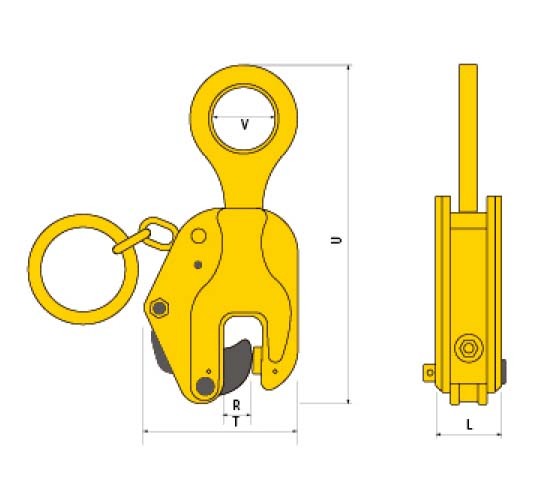

ModelJaw Opening  [mm]Load Capacity [kg]Net Weight [kg]
GA-CDH0.8T0~165002.8
GA-CDH1T0~2210003.6
GA-CDH2T0~3020005.5
GA-CDH3T0~40300010
GA-CDH5T0~50500017
GA-CDH8T0~60800026
GA-CDH10T0~901000032
GA-CDH12T25~901200048
GA-CDH16T60~1251600080
GA-CDH20T0~9020000149
GA-CDH30T10~9030000155

Q1: Do you have relevant certificate?

A: We have CE, ISO9001, SGS for all products, and we can assist you with any certificate application you need.

Q2: Can I add my logo on the product?

A: Yes, we can offer OEM and ODM service to you.

Q3: Can I have a sample for testing?

A: Of course, Samples are not important, but sample will be 10% higher than quantity production.

Q4: How can I have the after-service?

A: We will assist you with installation and usage of the product. Our product is lifelong maintenance.

Q5: Do you have inspection procedures for the manufacture line?

A: We have 100% self-inspection quality management system before packing.
