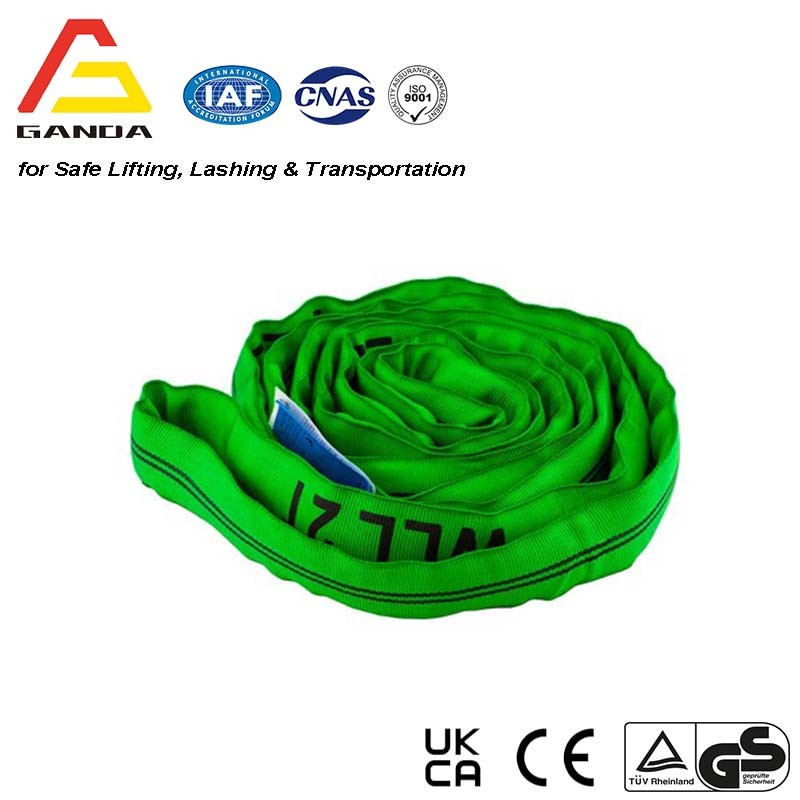

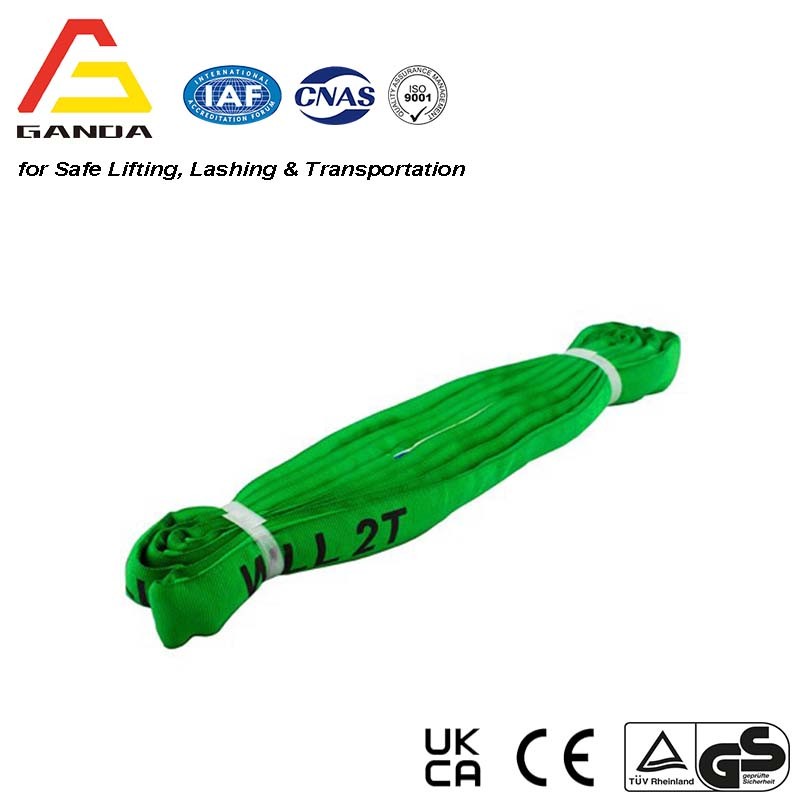

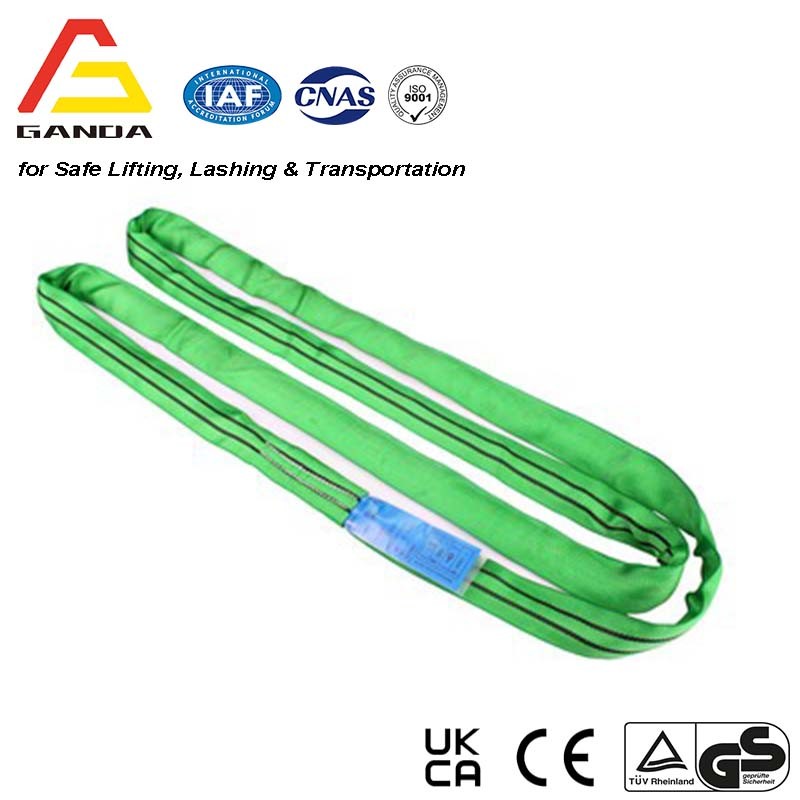

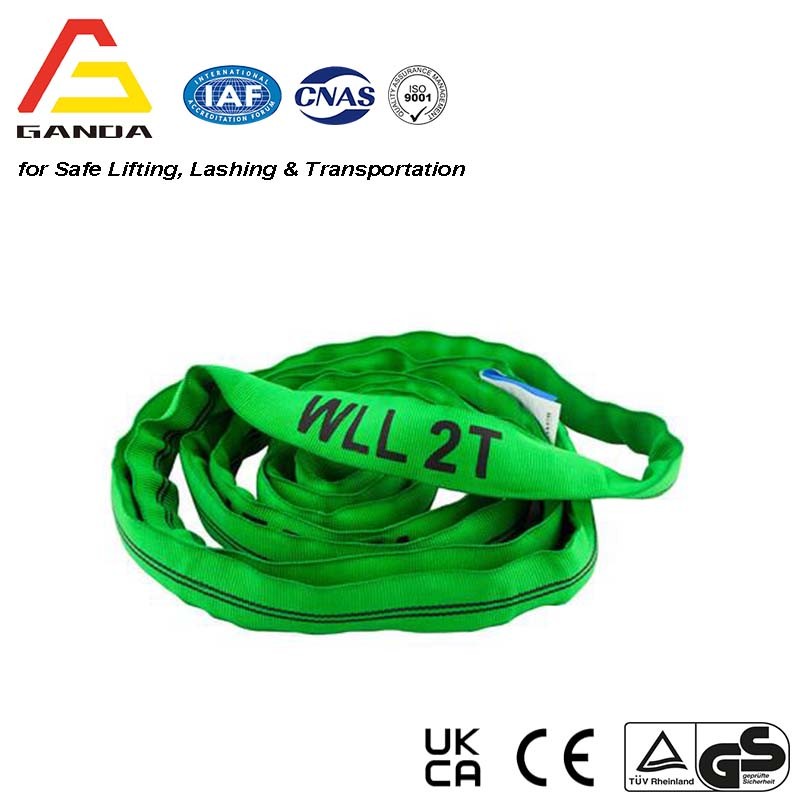

2T Roundsling

2T Polyester Roundsling to EN 1492-1
-Colour coded according to EN 1492-2 or White
-Safety Factor 7:1, 6:1, 5:1
-Capacity: 2T
-Length: 0,5m to 10m

Polyester Lifting RoundSling- - 2T/2,000KGS

Technical specifications
-Colour coded according to EN 1492-2 or White
-Safety Factor 7:1, 6:1, 5:1
-Capacity stripes; Each stripe is equal to 1 tonne capacity.
-The safe working load is clearly and continuously printed on the sleeve.
-Extra strong PU-impregnated webbing of the sleeve, which does not allow dirt to enter.
-Each sling is packed in plastic with CE declaration of conformity or Test Certificate.

Characteristics:
-Low elongation.
-Extremely wear-resistant.

Norms
-According to Machine Directive 2006/42/EC

Options
-The safe working load is clearly printed on the sleeve.
Remarks
- 15t up to 100t is available.
- When ordering it is important to make clear whether the length specified is circumference or effective working length.

ItemColourcoded
According to

EN 1492-2
NBR 15637-2

Working Load Limit
Straight

Lift

Choked

Lift

ß
0°-7°7°-45°  45°-60°  Up to 45°   45°-60°
 1.0 0.82.0  1.4 1.0 0.7 0.5
 GARS7-01 Purple 1000 800 2000 1400 1000 700 500
 GARS7-02 Green 2000 1600 4000 2800 2000 1400 1000
 GARS7-03 Yellow 3000 2400 6000 4200 3000 2100 1500
GARS7-04 Grey 4000 3200 8000 5600 4000 2800 2000
 GARS7-05 Red 5000 4000 10000 7000 5000 3500 2500
 GARS7-06 Brown 6000 4800 12000 8400 6000 4200 3000
GARS7-08 Blue 8000 6400 16000 11200 8000 5600 4000
GARS7-10 Orange 10000 8000 20000 14000 10000 7000 5000
GARS7-12 Orange 12000 9600  24000 16800  12000 8400 6000
