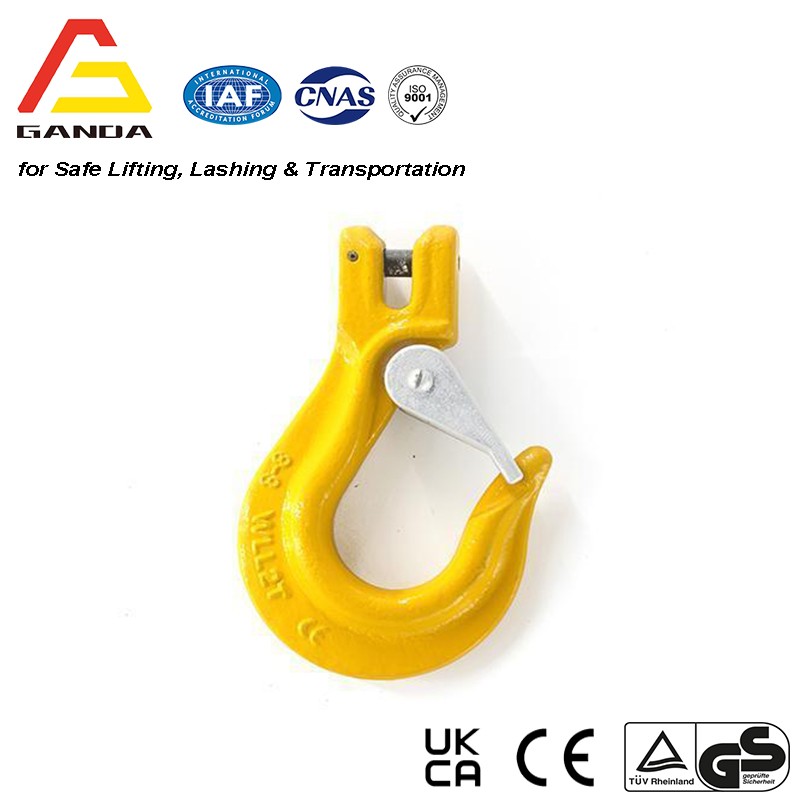

GA014 Alloy Steel Clevis Sling Hook

GA014 Alloy Steel Clevis Sling Hook
Size: 6mm to 16mm
SF: 4:1
Color: Yellow, Red, Orange

Features
● It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated;
● It can be matched with sling and G80 chains which can meet the standard EN818-2;
● Each workpiece should pass testing at 2.5 times of working load limit;
● We should carry out sampling and 20000 times of fatigue testing;
● We should carry out strict sampling and breakage testing for each batch of products;
● We should carry out 100% magnetic powder flaw detection;
● 100% of the pin should be tested to ensure that they have the same hardness;
● Surface treatment: plastics spraying.
● Color code: red RAL3020/yellow RAL1003.

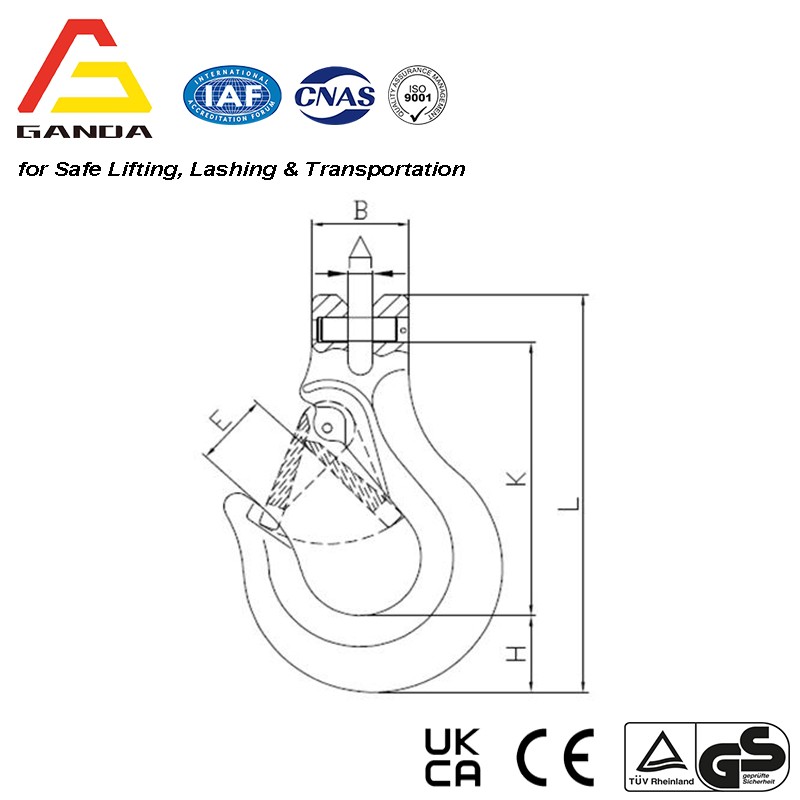

Parameters (Unit: mm)

Item No	Weight (kg)	Woring load limit(t)	Breaking load(t)	A±0.5	E±2	B±1.5	H±1	K±2	L±2.5
8-GA014-6/7	0.55	1.6	6.4	8	24	36	28	100	144
8-GA014-7	0.72	1.6	6.4	9	28	37.5	32	105	153
8-GA014-8	0.91	2	8	10	30	42	32.5	117	168
8-GA014-10	1.42	3.15	12.6	12	32	50	41	128	191.5
8-GA014-13	3.3	5.3	21.2	15	40	60	49	177	254.5
8-GA014-16	4.9	8	32	18.5	55	67	48.5	222	289
