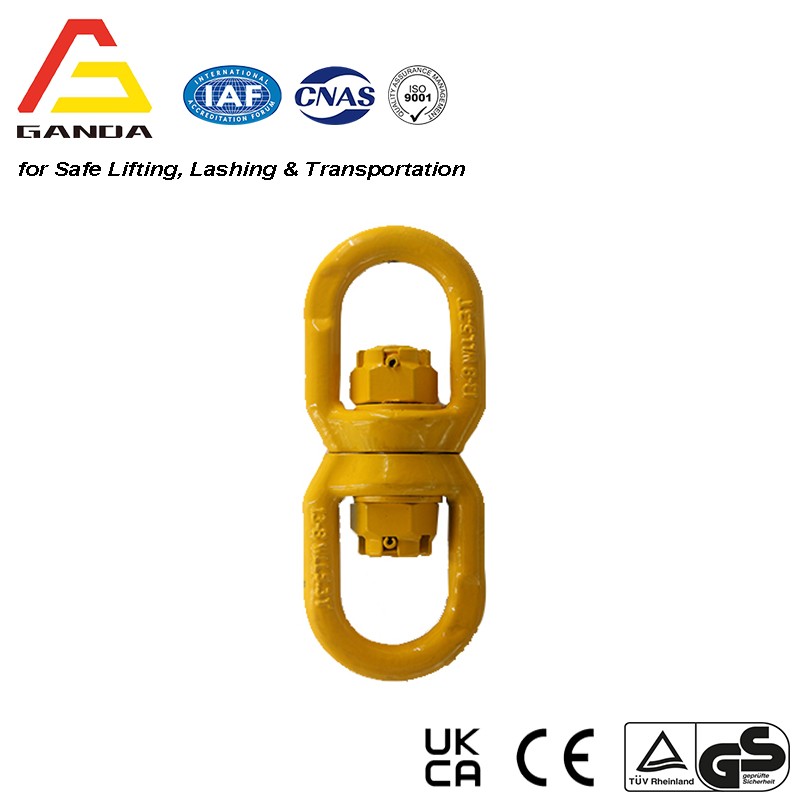

G80 Regular Swivel
Tamanho: 7/8mm a 16mm
SF: 4:1
Color: Yellow

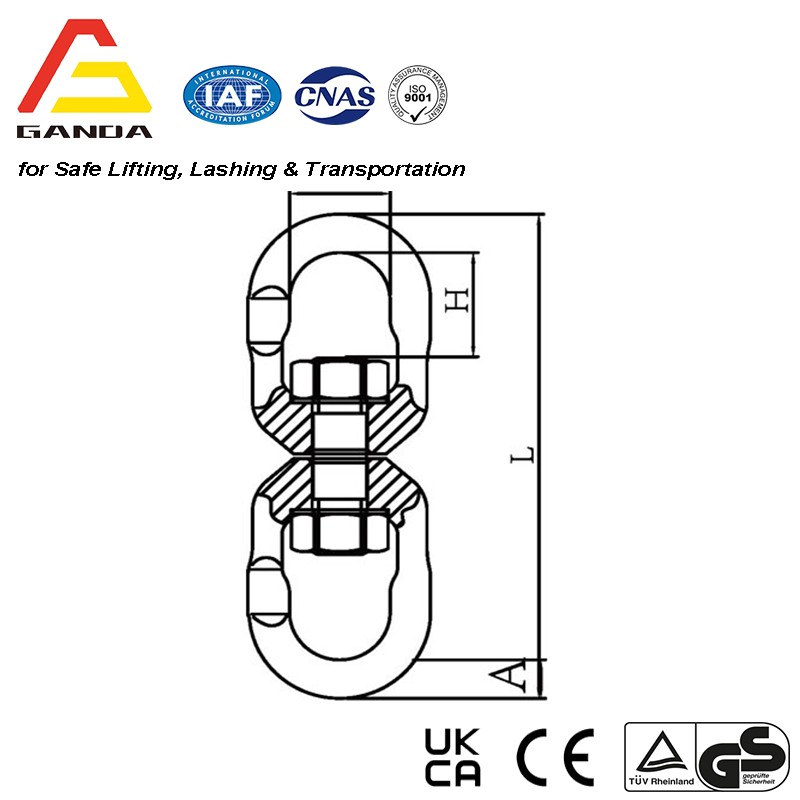

Technical Parameters (Unit: mm)
| ITEMNO. | WEIGHT/kg | Working Load Limit (T) | Breaking Load (T) | A±l | D ±1 | H±1.5 | L±2 |
| 8-GA031-7/8 | 0.6 | 2 | 8 | 12.5 | 35.5 | 28.5 | 164 |
| 8-GA031- 10 | 1.5 | 3.15 | 12.6 | 15 | 42 | 34.5 | 194.5 |
| 8-GA031-13 | 1.75 | 5.3 | 21.2 | 18 | 50 | 43.5 | 216.5 |
| 8-GA031-16 | 4.52 | 8 | 32 | 21.5 | 61 | 56 | 289 |
