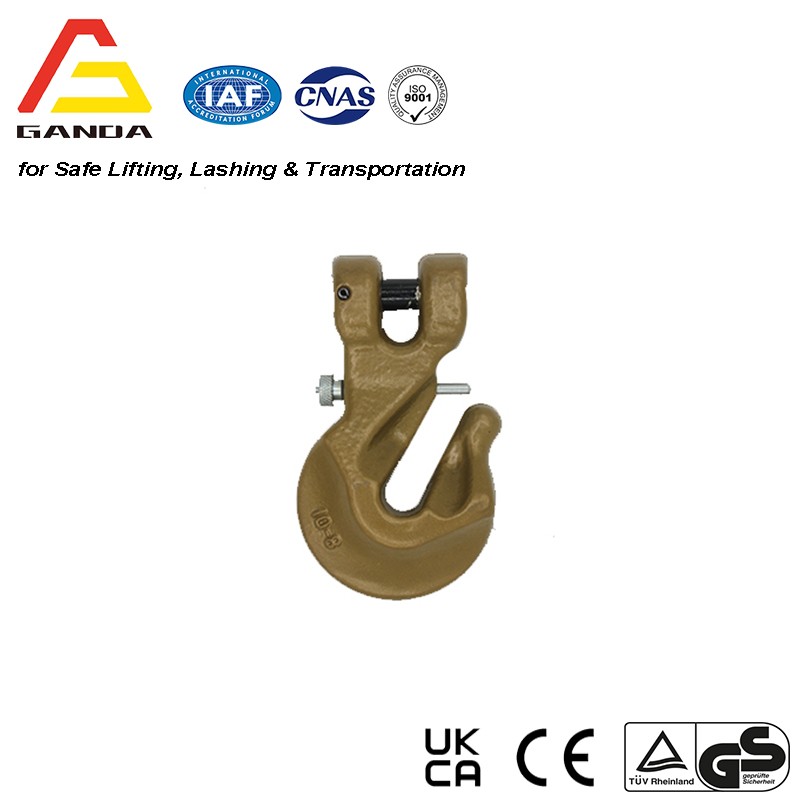

G80 Clevis Grab Hook
8mm a 16mm
FS: 4:1

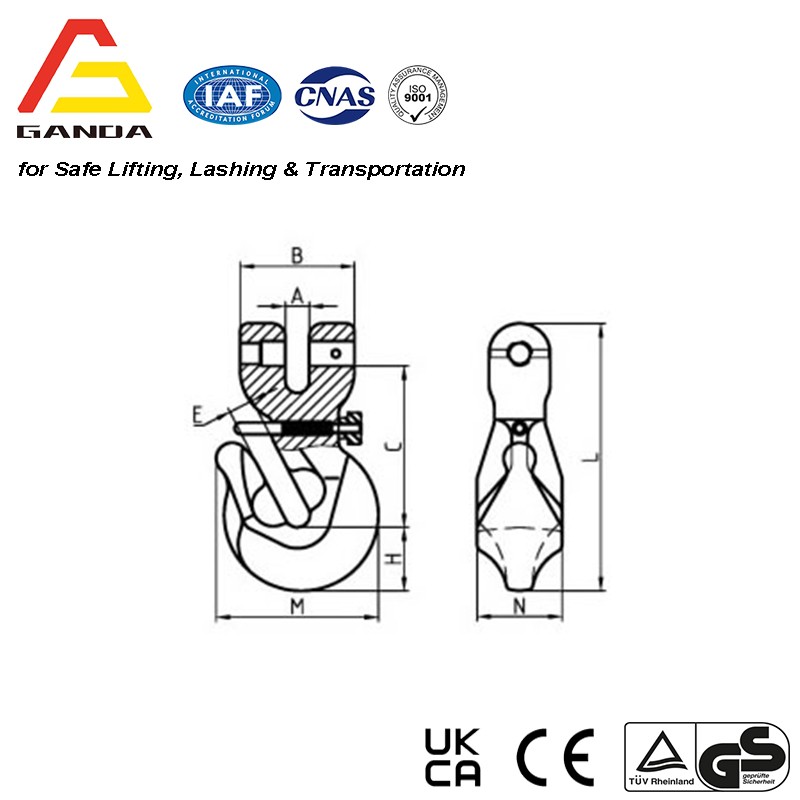

Technical Parameters
| ITEM NO, | WEIGHT/kg | Working Load Limit (T) | Breaking Load (T) | A±0,5 | B±1 | C±1 | E±0,5 | M±2 | N±0,5 | H±1 | L±2 |
| 8-8 | 0.6 | 2 | 8 | 9 | 43 | 61.5 | 9.5 | 61 | 32 | 24 | 102 |
| 10-8 | 1.0 | 3.15 | 12.6 | 12 | 49 | 72 | 12 | 78.5 | 40 | 32 | 125 |
| 13-8 | 2.7 | 5.3 | 21.12 | 14.5 | 60 | 93.4 | 15 | 99.3 | 52 | 40 | 160 |
| 16-8 | 3.7 | 8 | 32 | 17.3 | 73 | 112 | 18 | 121 | 61 | 44.8 | 188 |
