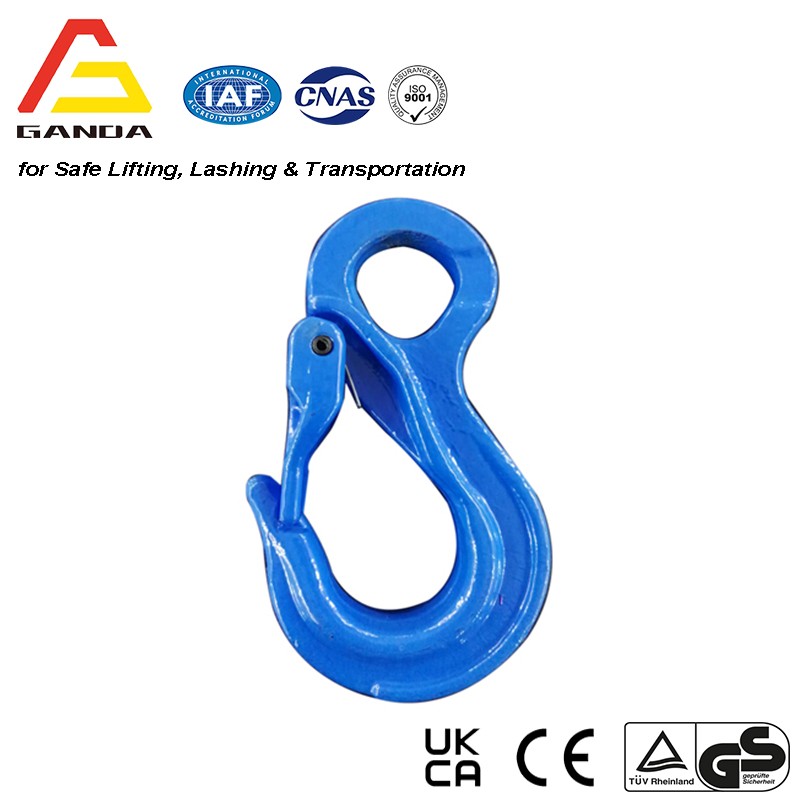

G100 Eye Sling Hook with Latch
WLL: 8mm to 13mm
SF: 4:1 for Chain
Color: Blue
Features
● Surface treatment: plastic spraying.
● Color code: blue RAL5015.

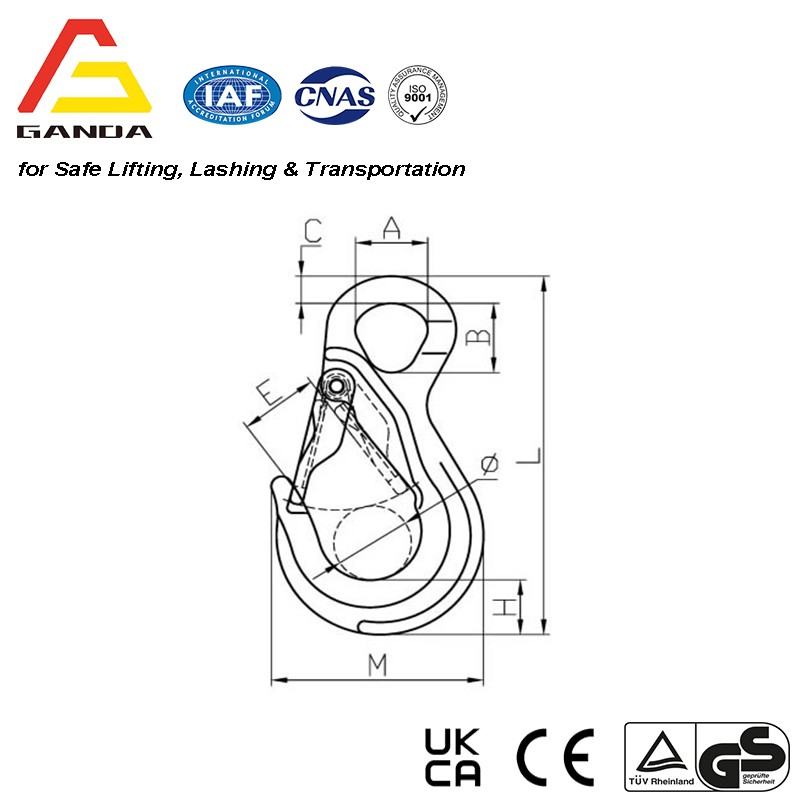

Technical Parameters
| ITEM NO. | WEIGHT/kg | Working Load Limit (t) | Breaking Load (t) | A±1 | B ±l | E±2 | H±l | φ±1,5 | C±0,5 | L ±2,5 | M ±2 |
| 10-GA1026-08 | 0.4 | 2.5 | 10 | 28 | 28 | 28.5 | 22 | 28 | u | 145 | 82 |
| 10-GA1026-10 | 0.86 | 4 | 16 | 34 | 34 | 31 | 26.2 | 35 | 14 | 170 | 97.5 |
| 10-GA1026-13 | 1.75 | 6.7 | 26.8 | 42 | 44 | 40 | 36 | 36 | 18.5 | 206 | 135 |
