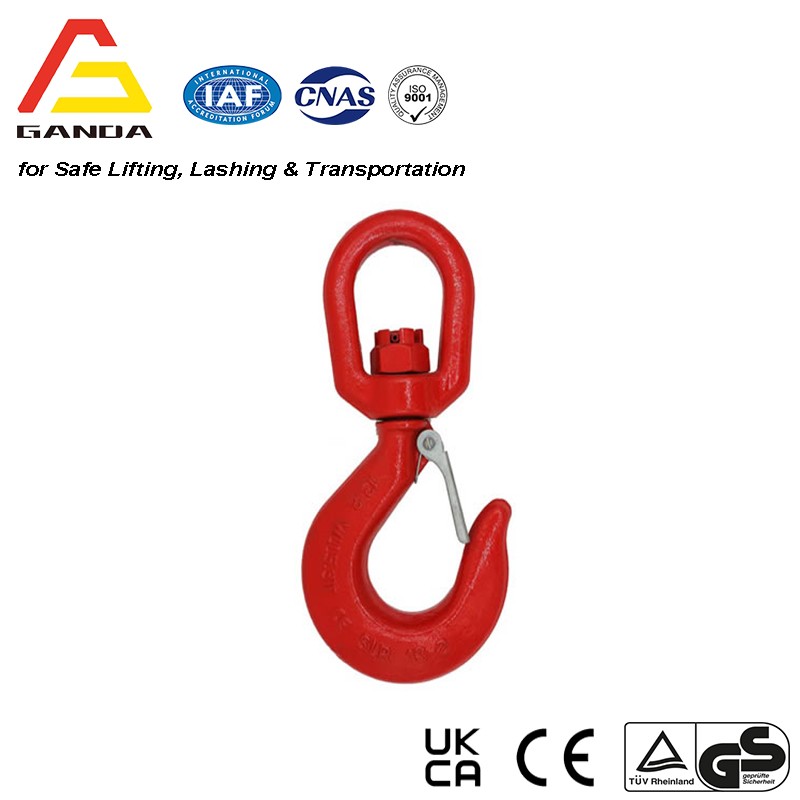

Alloy Swivel Hook with Latch
6mm a 32mm
FS: 4:1
Cor: Red
Technical Parameters

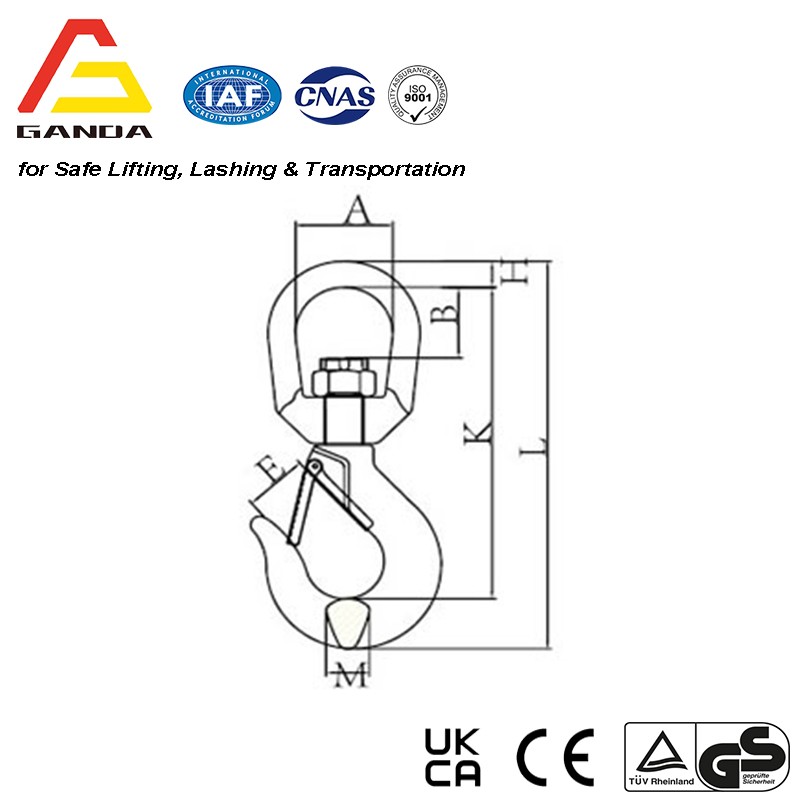

| ITEMNO. | WEIGHT/kg | Working Load Limit (T) | Breaking Load (T) | A±1.2 | E±1.5 | B±1.5 | H±1 | K±2 | L±2.5 | M±0.5 |
| 8-GA040-06 | 0.34 | 1.12 | 4.48 | 32 | 22 | 17 | 9 | 109 | 137 | 16 |
| 8-GA04Q-08 | 1.02 | 2 | 8 | 42 | 21.5 | 35 | 15.8 | 150 | 192 | 21 |
| 8-GA040-1Q | 1.24 | 3.15 | 12.6 | 42.5 | 26 | 35 | 15.8 | 162.5 | 208.5 | 23 |
| 8-GA040-13 | 3.6 | 5.3 | 21.2 | 48 | 32.5 | 39 | 18 | 191 | 246 | 31 |
| 8-GA040-16 | 4.66 | 8 | 32 | 62 | 43 | 53 | 25 | 243.5 | 313 | 34 |
| 8-GA040-20 | 7.4 | 12.5 | 50 | 68 | 49.5 | 51 | 28.5 | 276.5 | 363.5 | 41.5 |
| 8-GA040-22 | 10.6 | 15 | 60 | 79 | 54.5 | 65 | 32 | 332 | 431 | 55.7 |
| 8-GA040-26 | 21.4 | 21.2 | 84.8 | 105 | 81 | 114 | 40 | 429.5 | 545.5 | 70 |
| 8-GA040-32 | 32 | 31.5 | 126 | 105 | 100 | 96 | 40 | 465.3 | 596 | 76.2 |
