Alloy Steel Swivel Ring

Alloy Steel Swivel Ring
SF: 4:1
Color: Red

It is equipped with bearing.
Ultimate load is 4 times the Working Load Limit.

SWIVEL RING WITH BEARING
● It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated;
● It can be matched with sling and G80 chains which can meet the standard EN818-2;
● Each workpiece should pass testing at 2.5 times of working load limit;
● We should carry out sampling and 20000 times of fatigue testing;
● We should carry out strict sampling and breakage testing for each batch of products;
● We should carry out 100% magnetic powder flaw detection;
● 100% of the pin should be tested to ensure that they have the same hardness;
● Surface treatment: plastics spraying.
● Color code: red RAL3020/yellow RAL1003.

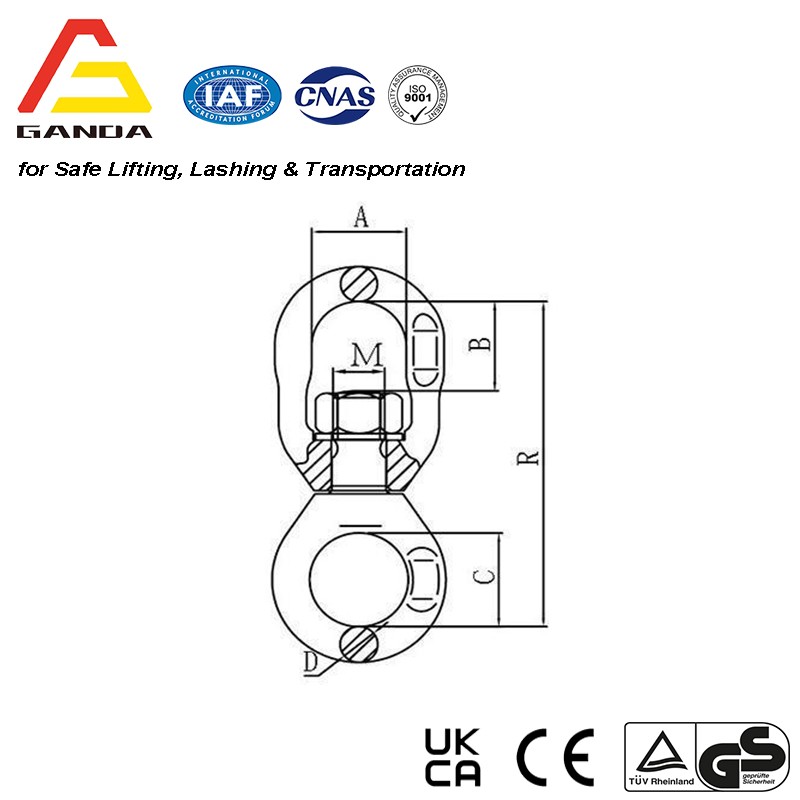

Parameters (Unit: mm)

Item Code	Weight (kg)	Woring Load Limit (t)	Breaking Load (t)	A±1	B±2	E±1.5	C±1.5	D±1	L±2
8-GA283-10	1.85	3.15	12.6	38	76	34.5	51	19	209
8-GA283-13	5.5	5.3	21.2	60	116	60	77	28	312

Parameters (Unit: mm)

Item Code	Weight (kg)	Woring Load Limit (t)	Breaking Load (t)	A±1.2	B±1.5	E±1.5	L±3	D±1
8-GA263-1-1/2"	13.55	17	85	72	148	61	435	37
8-GA263-1-3/4"	15.95	25	125	80	168	68	464	43
