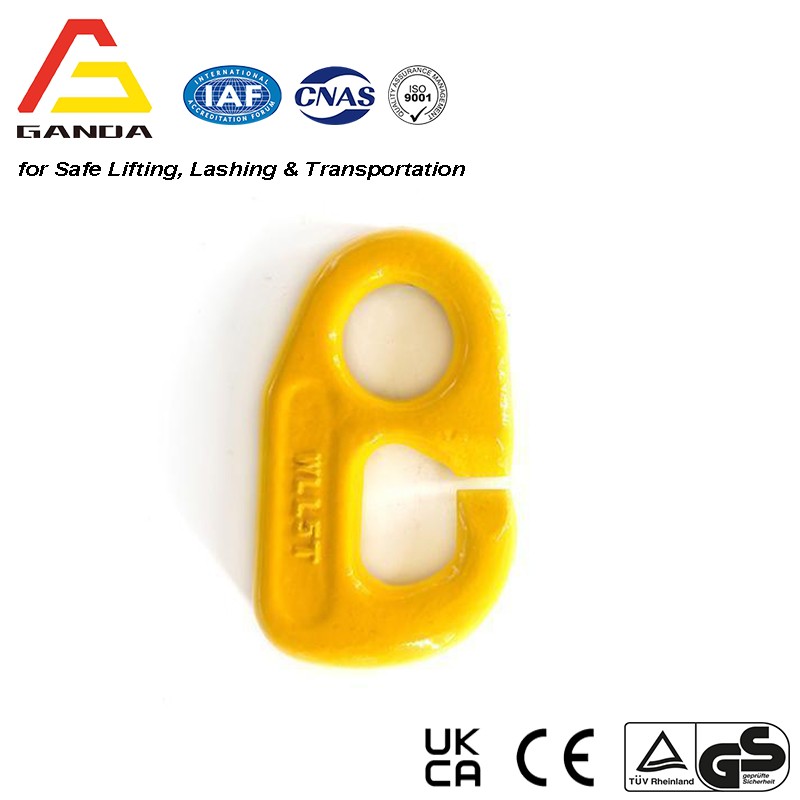

Alloy Steel Forged Hook

Alloy Steel Forged Hook
SF:4:1
Color: Yellow

Features
● It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated;
● It can be matched with sling and G80 chains which can meet the standard EN818-2;
● Each workpiece should pass testing at 2.5 times of working load limit;
● We should carry out sampling and 20000 times of fatigue testing;
● We should carry out strict sampling and breakage testing for each batch of products;
● We should carry out 100% magnetic powder flaw detection;
● 100% of the pin should be tested to ensure that they have the same hardness;
● Surface treatment: plastics spraying.
● Color code: red RAL3020/yellow RAL1003.

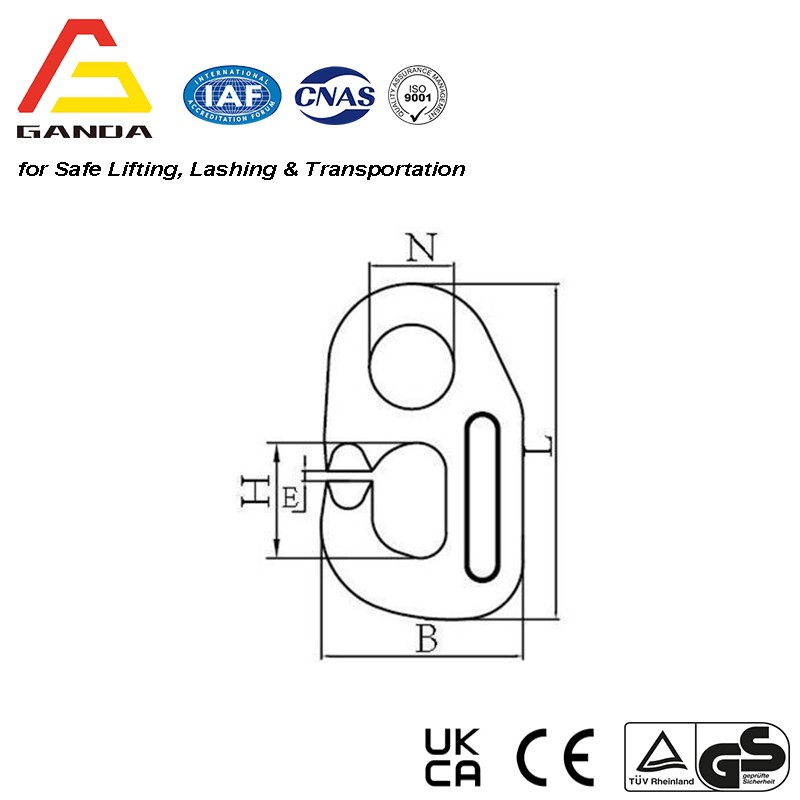

Parameters (Unit: mm)

Item CodeWeight (kg)Working Load Limit/tBreaking Load/tN±1B±1.5E±0.1H±1L±1.2
8-GA087-1.5T0.51.57.52861335102
8-GA087-3.0T0.733153072341119
8-GA087-5.0T1.25253584.5342137
8-GA087-8.0T1.68404296342153

It is cut by steel plate.

Ultimate load is 4 times the Working Load Limit.
