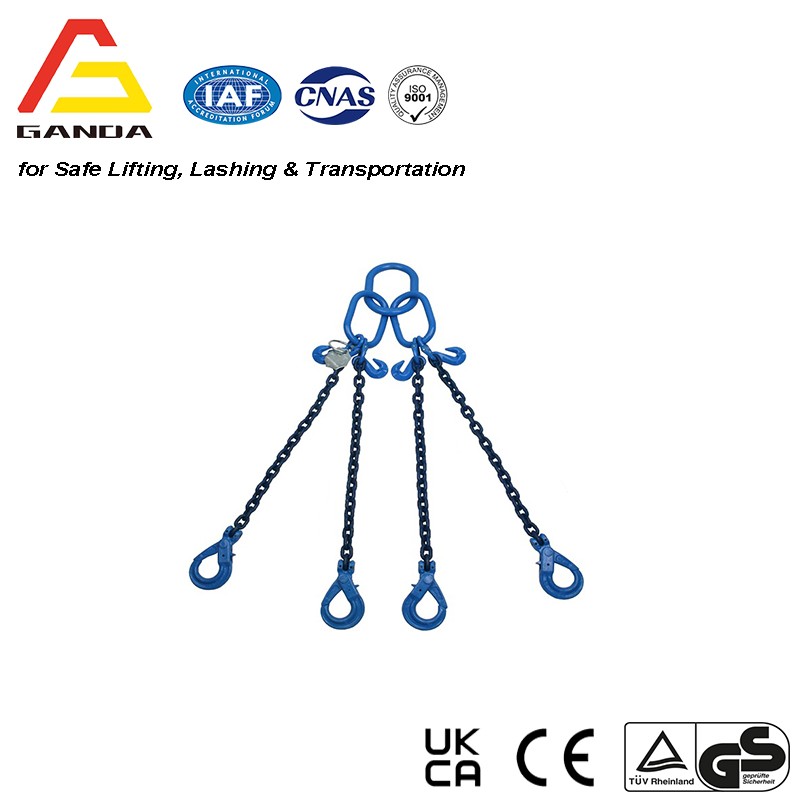

G100 21t 4-Leg chainsling With Safety Hooks

16mm Grade 100 4Leg Chainsling, Adjusters & Comes With Safety Hooks

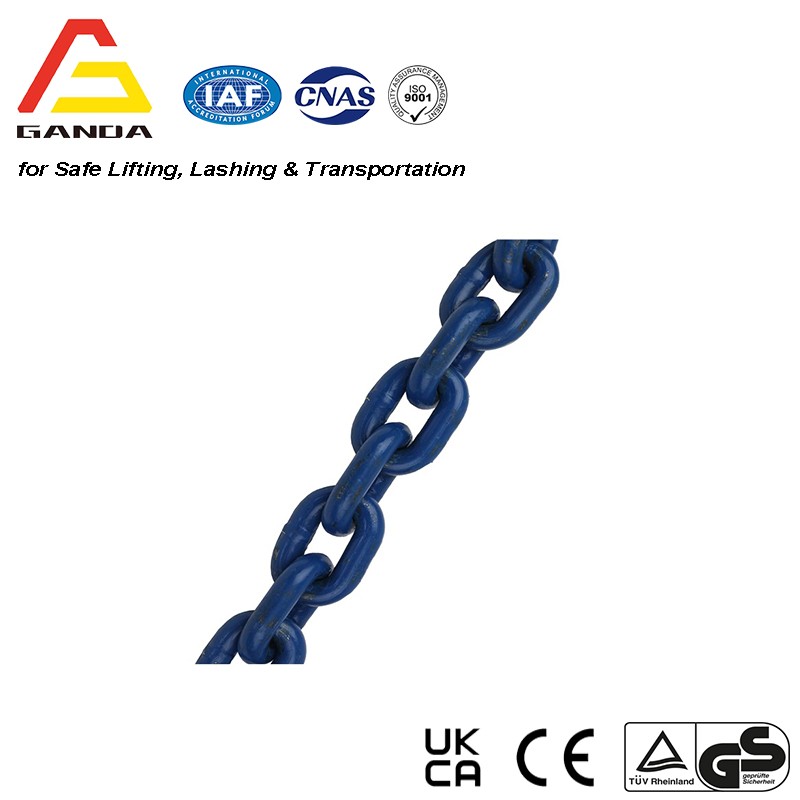

Chain diameter is 16mm

Grade 100 offers a 25% greater lifting capacity for the same size G80 chain

Lengths Available From 2mtr to 6mtr [ Longer or custom made to order ].

Fitted With Safety Self Locking Hooks and Length Adjusting Shorteners

WLL 14.1 TONNE @ 0-45 DEGREES VERTICAL.
[ WLL = Working Load Limit ]

* Temperature Ranges From -40 TO +200 Degrees C Without Any Reduction In WLL.

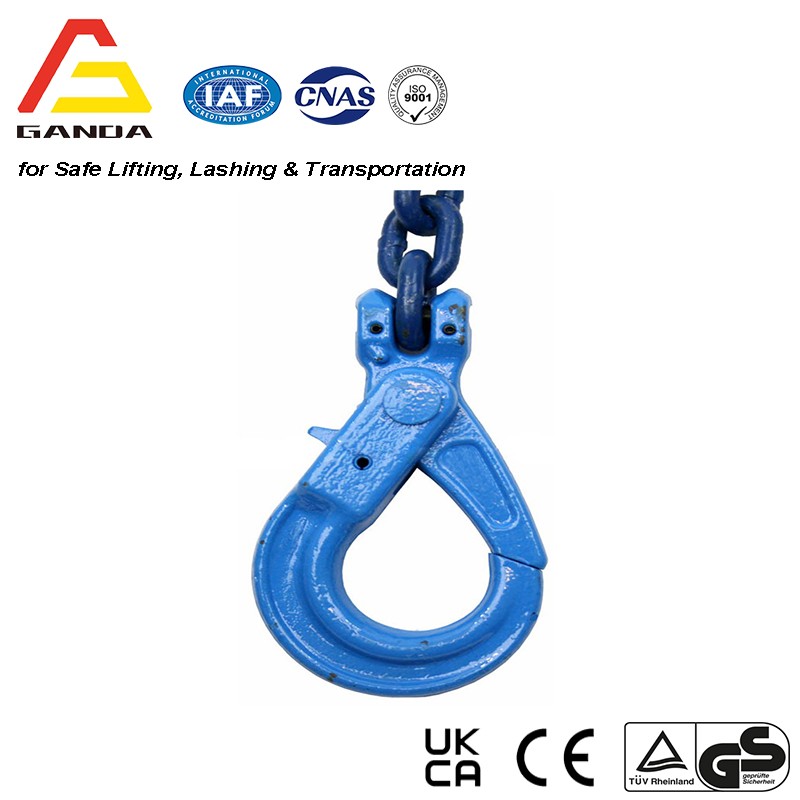

Safety hooks have a heavy duty integral safety latch which automatically locks when the load is applied.

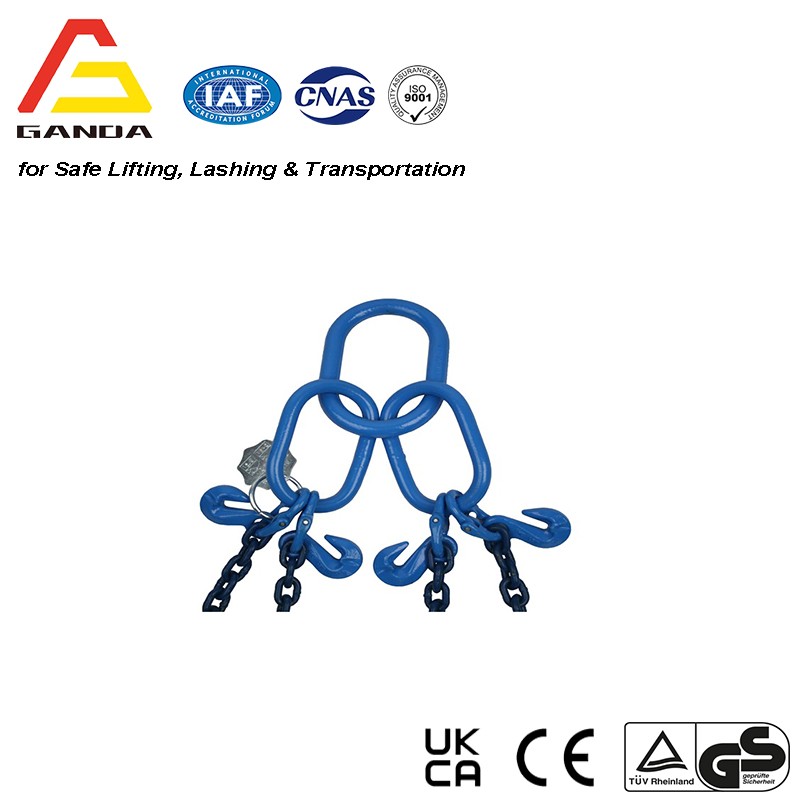

Adjusting shortners allow for the length of the chain to be adjusted, making the chains more flexible for different applications.

N.B. Length Adjuster only fitted on 2mtr & Longer chains

Supplied with full certification.

12 Month Warranty.


G80 Short Link Chain

G80 Alloy AcessoryG80 Chain Sling
G100 Short Link ChainG100 Alloy AcessoryG100 Chain Sling

Do not exceed rating capacity! To be used for industrial lifting only!

Use of Chain Slings

  • Keep a register of all slings in use

  • Never lift with a twisted chain

  • Chain slings should be shortened with a shortening hook, never by knotting

  • Protect the chain against sharp edges by sufficient padding

  • Never point load a hook - the load should always seat correctly in the bowl of the hook

  • Always use the correct size sling for the load, allowing for the included angle and the possibility of unequal loading

  • The master link should always be able to move freely on the crane hook

  • Avoid shock loading at all times

  • Avoid severe sling angles, use protection over sharp or rough edges



Maintenance of Chain Slings

  • Chains should be inspected prior to use

  • Periodic use through examination must be carried out at least every 12 months or more frequently according to statutory regulations, type and frequency of use

  • Chains with bent links or with cracks or gouges in the link should be replaced, as should deformed components such as bent master links, opened up hooks and any fitting showing signs of damage



Basic Rules for safe lifting

  • Always know the weight of the load you are going to lift

  • Select the correct slings for the lift

  • Avoid severe sling angles, use protection over sharp or rough edges

  • Make sure area and destination for load are clear before lifting

  • Always use dunnage so that slings are removed without damage

  • report any damage

  • Store slings in clean, dry areas correctly


Note: When chain is choked it is de-rated 20%
