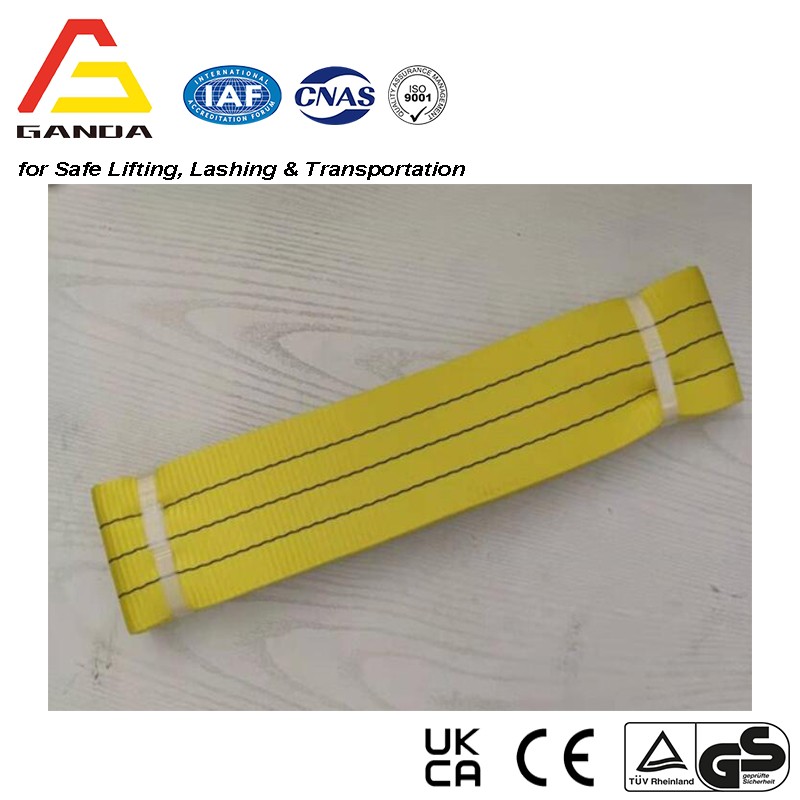

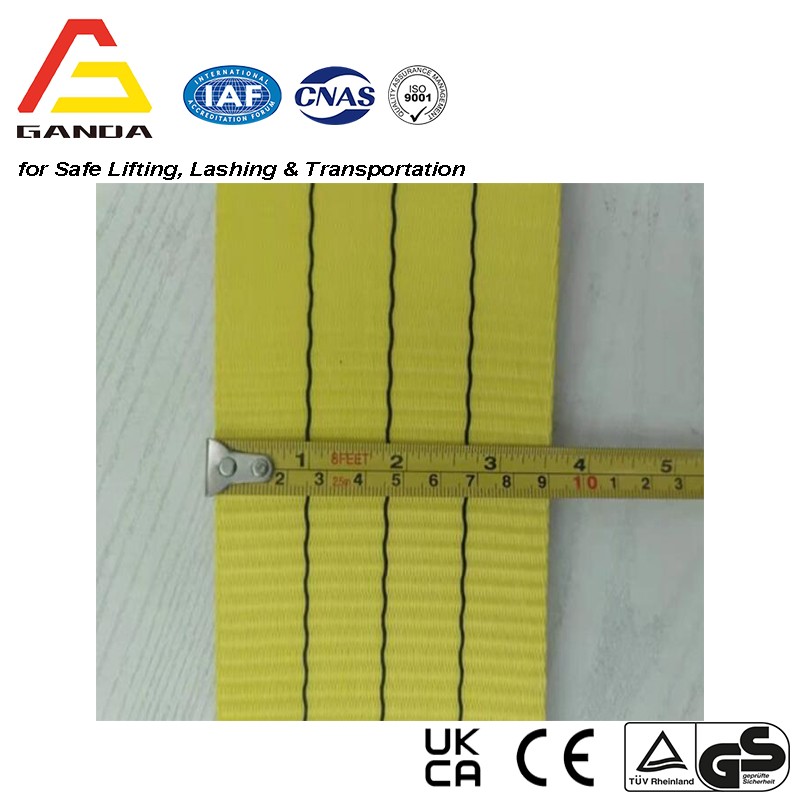

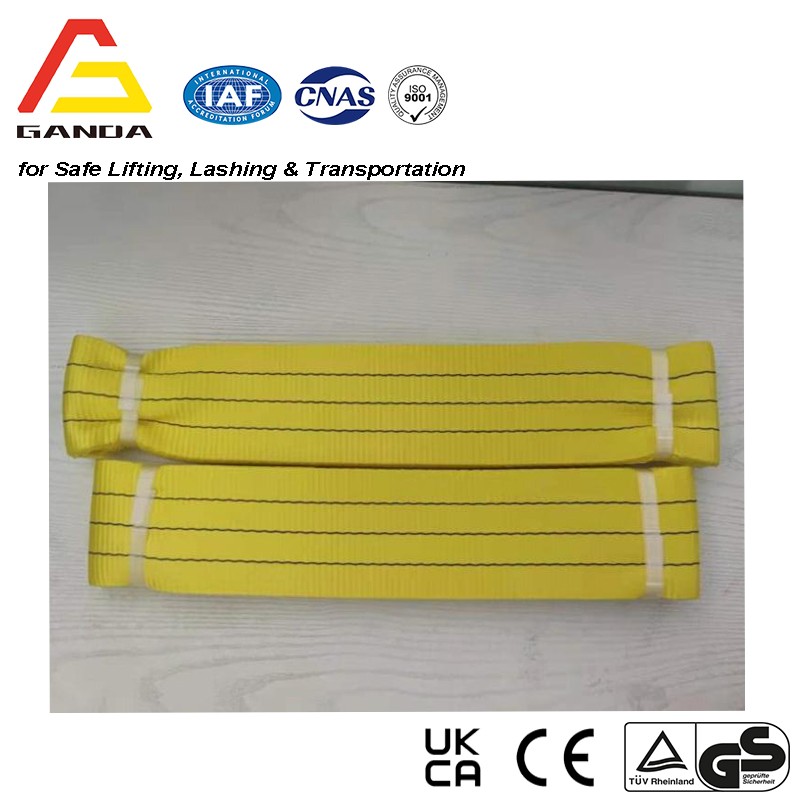

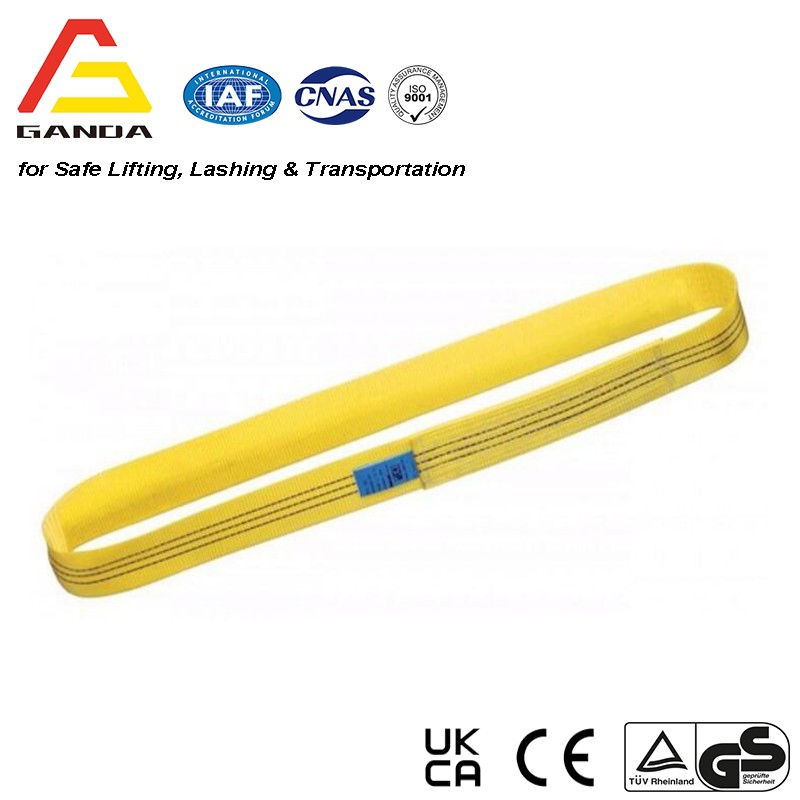

3T Endless Webbing Sling

3T Polyester Endless Webbing Sling to EN 1492-1
-Colour coded according to EN 1492-1 or White
-Safety Factor 7:1, 6:1, 5:1
-Capacity: 3T
-Length: 0,5m to 10m

Polyester Endless Webbing Sling- - 3T/3,000KGS

Technical specifications
-Colour coded according to EN 1492-1 or White
-Safety Factor 7:1, 6:1, 5:1

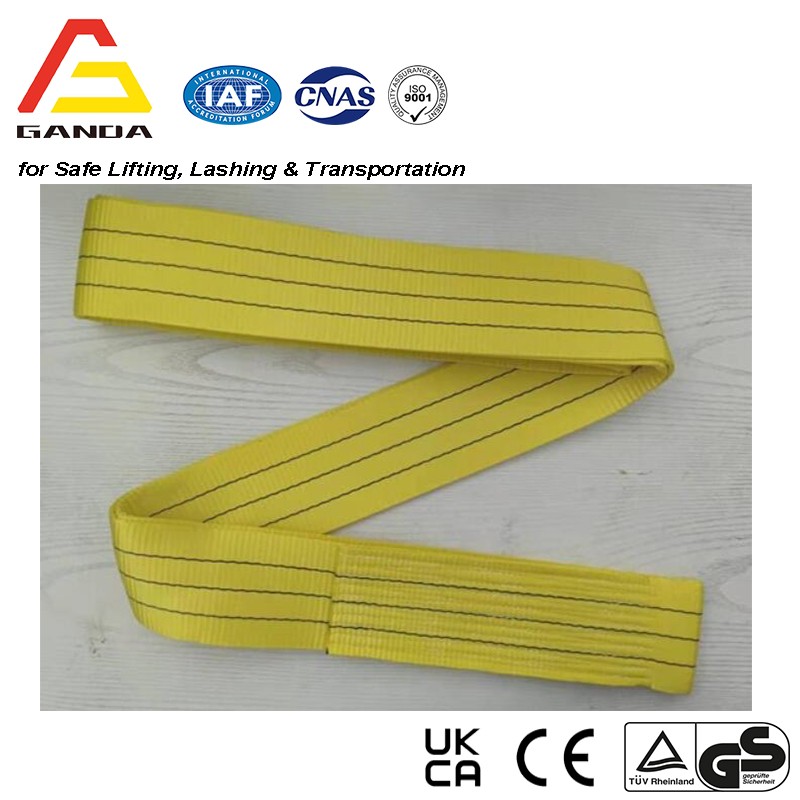

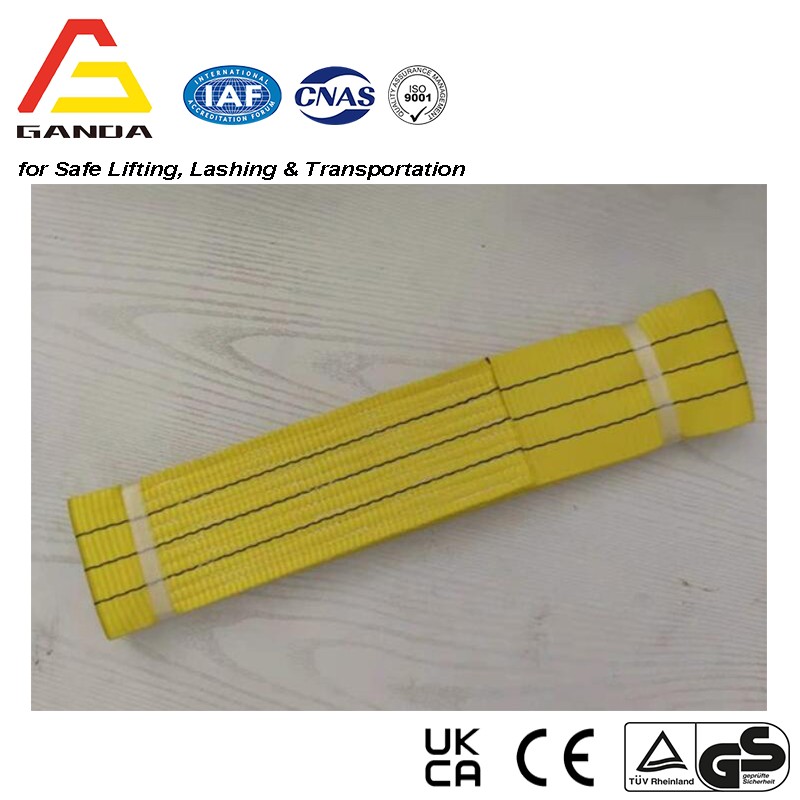

Polyester endless slings are formed by overlapping the ends of the heavy duty webbing to form a load carrying splice. It is recommended when using endless sling straps that the load carrying splice NOT be placed into the load or lift connection points. Likewise, when Endless slings are used in a choker hitch it is recommended that the load carrying splice be placed above the choker point and below the lifting fixture.

If an endless sling configuration is desired that does not feature a load carrying splice, we’d recommend the use of a polyester roundsling.


WidthColourcoded
According to

EN 1492-2
NBR 15637-2

Working Load Limit
Straight

Lift

Choked

Lift

ß
0°-7°7°-45°  45°-60°  Up to 45°   45°-60°
 1.0 0.82.0  1.4 1.0 0.7 0.5
30MM Purple 1000 800 2000 1400 1000 700 500
60MM Green 2000 1600 4000 2800 2000 1400 1000
90MM Yellow 3000 2400 6000 4200 3000 2100 1500
120MM Grey 4000 3200 8000 5600 4000 2800 2000
150MM Red 5000 4000 10000 7000 5000 3500 2500
180MM Brown 6000 4800 12000 8400 6000 4200 3000
240MM Blue 8000 6400 16000 11200 8000 5600 4000
300MM Orange 10000 8000 20000 14000 10000 7000 5000
300MM Orange 12000 9600  24000 16800  12000 8400 6000
