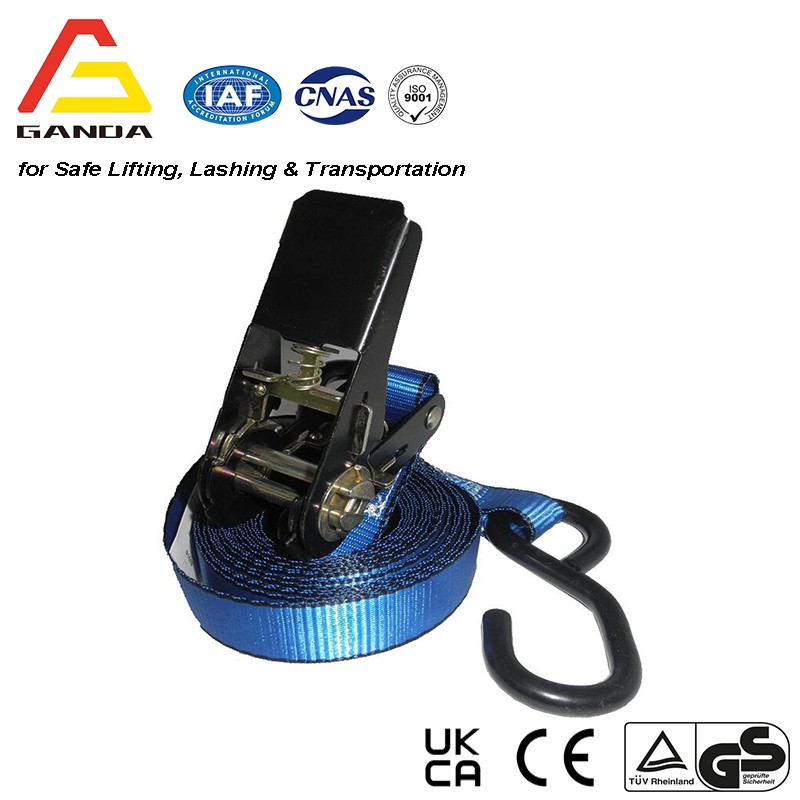

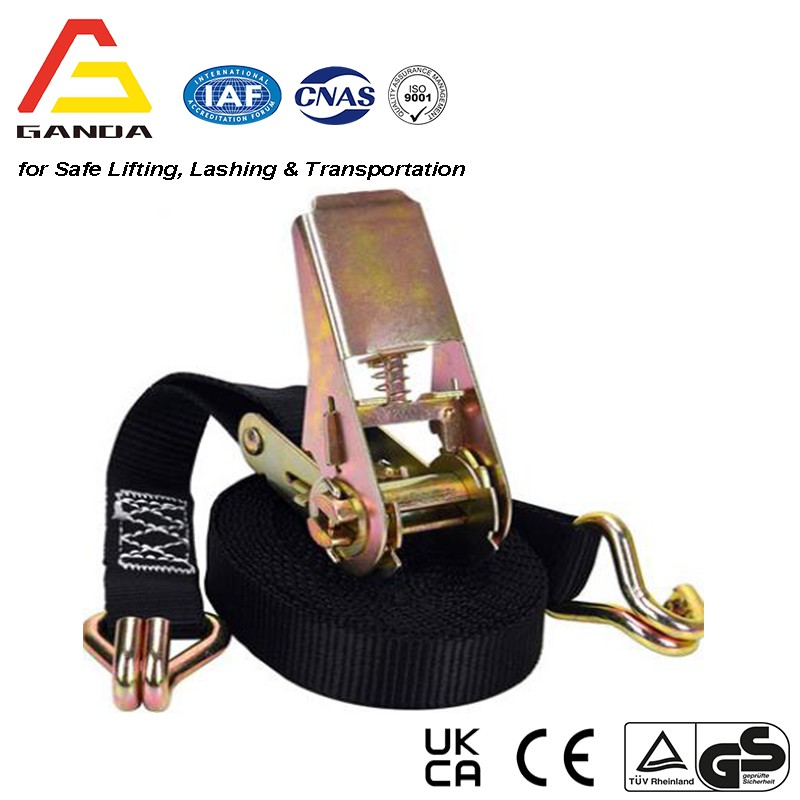

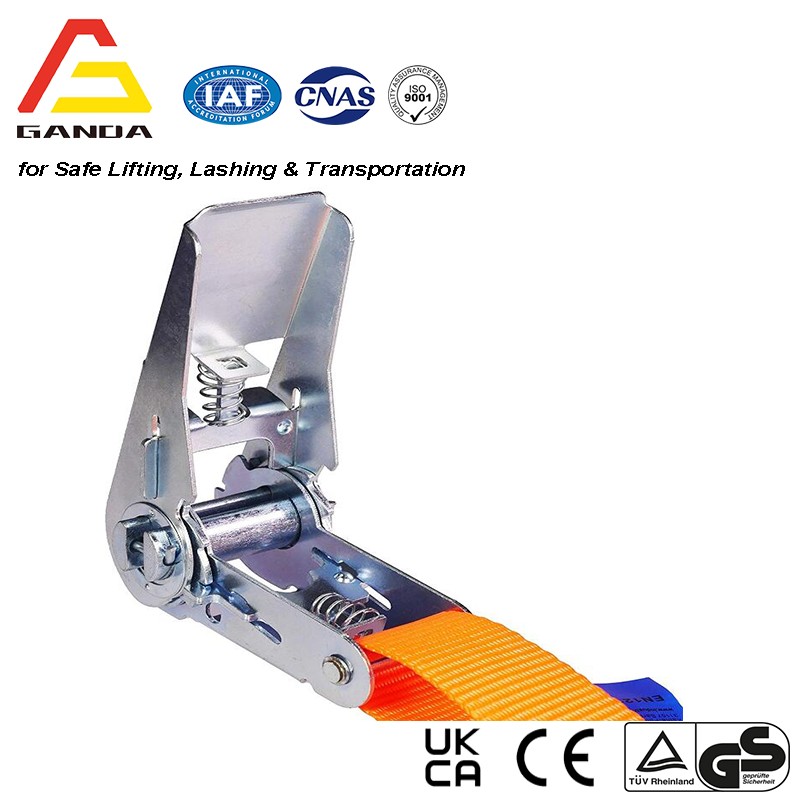

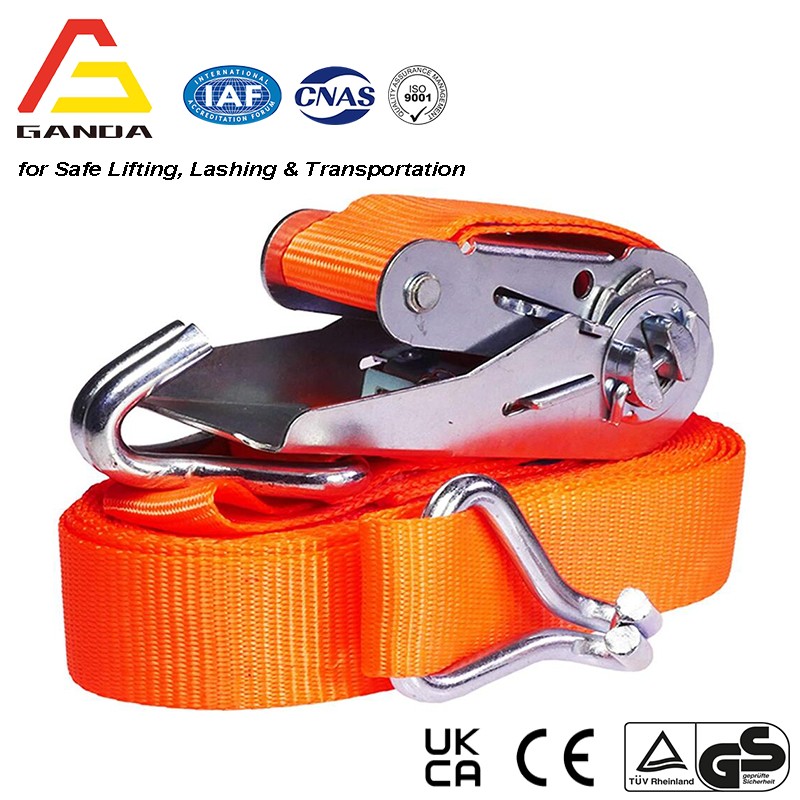

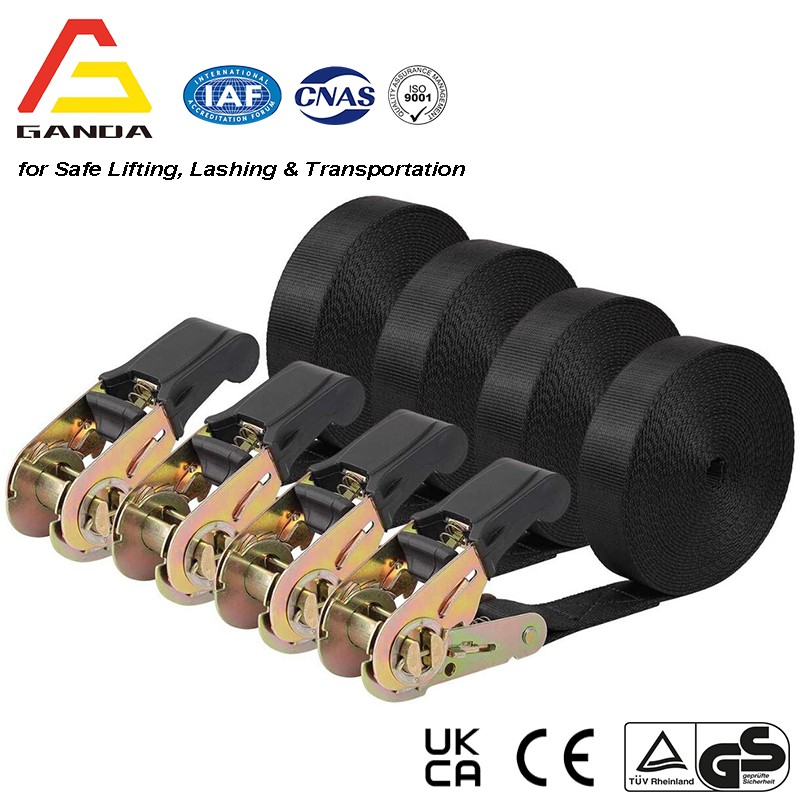

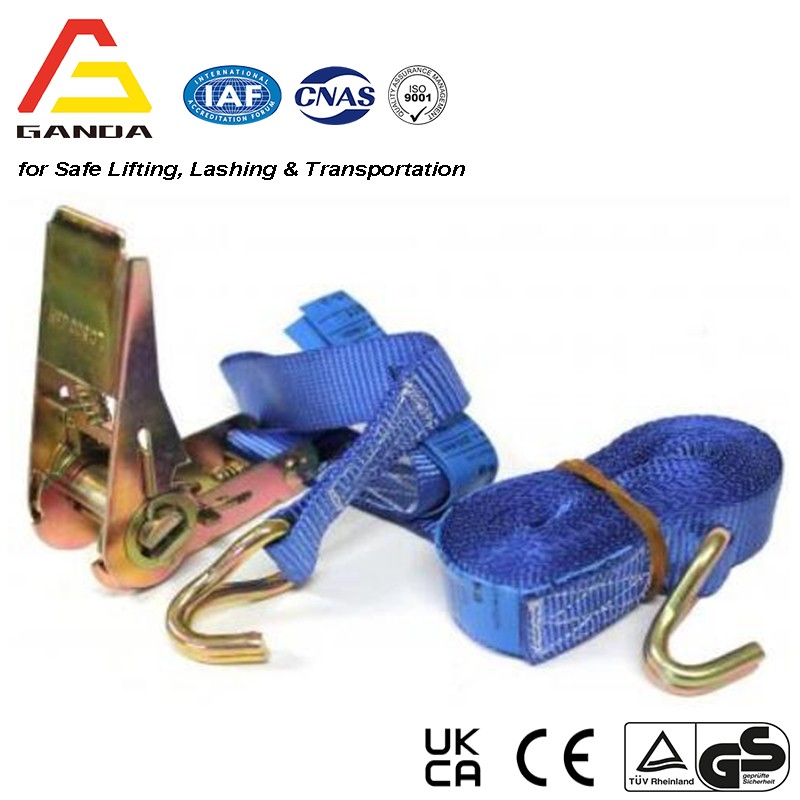

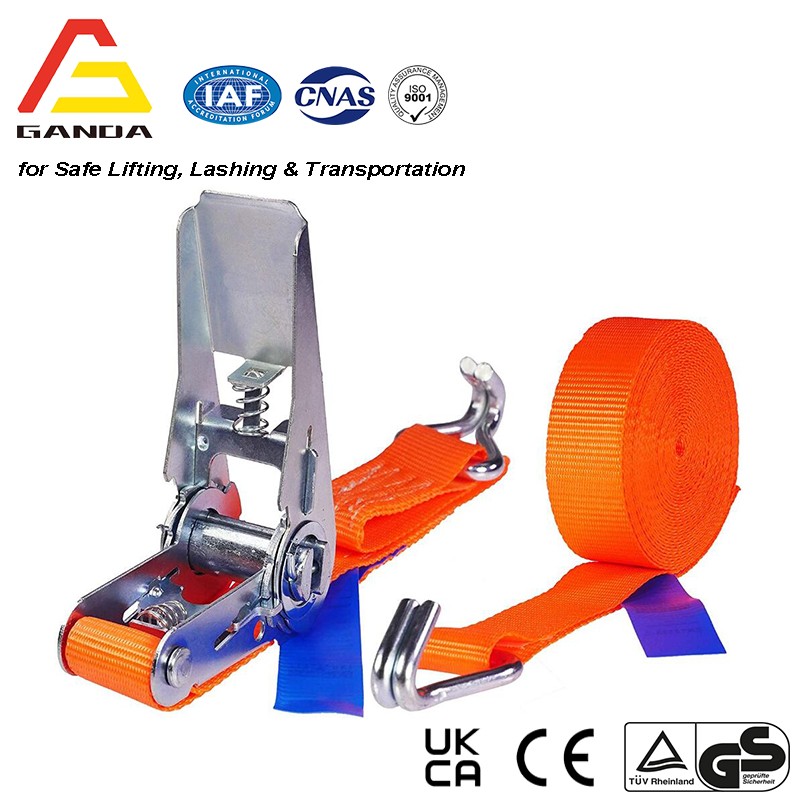

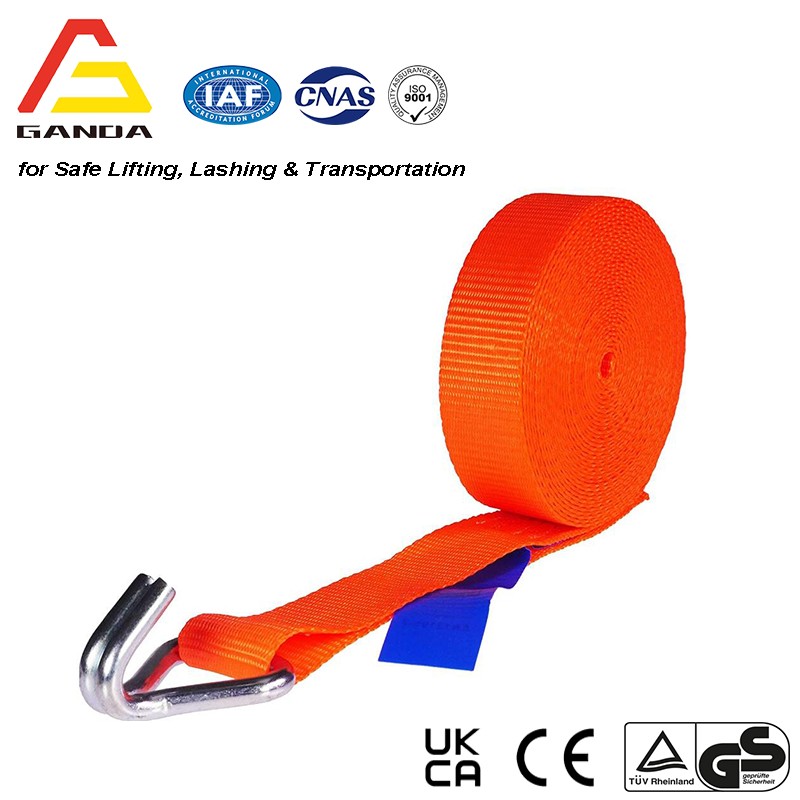

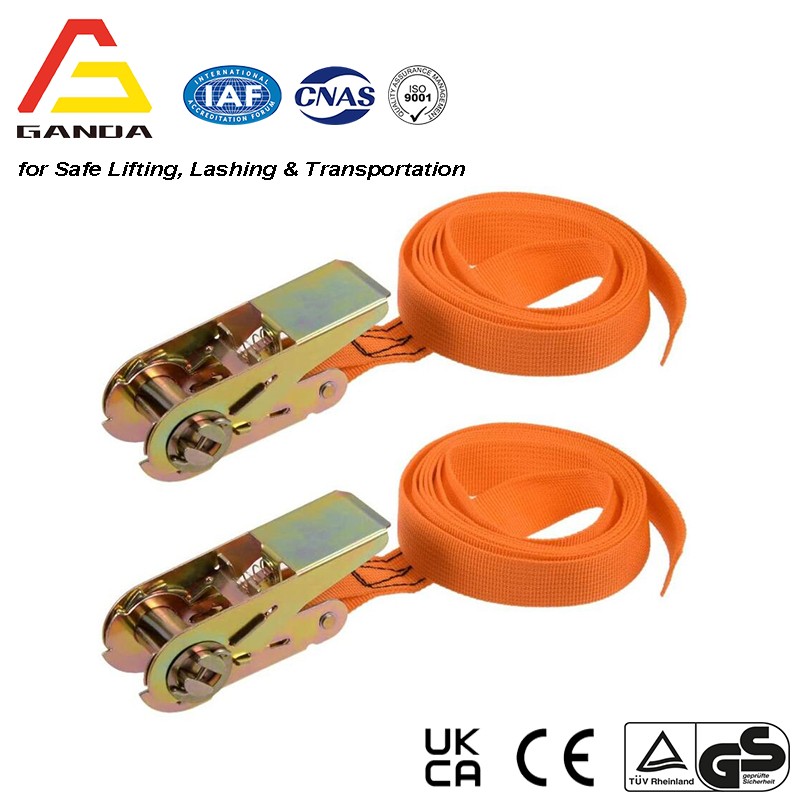

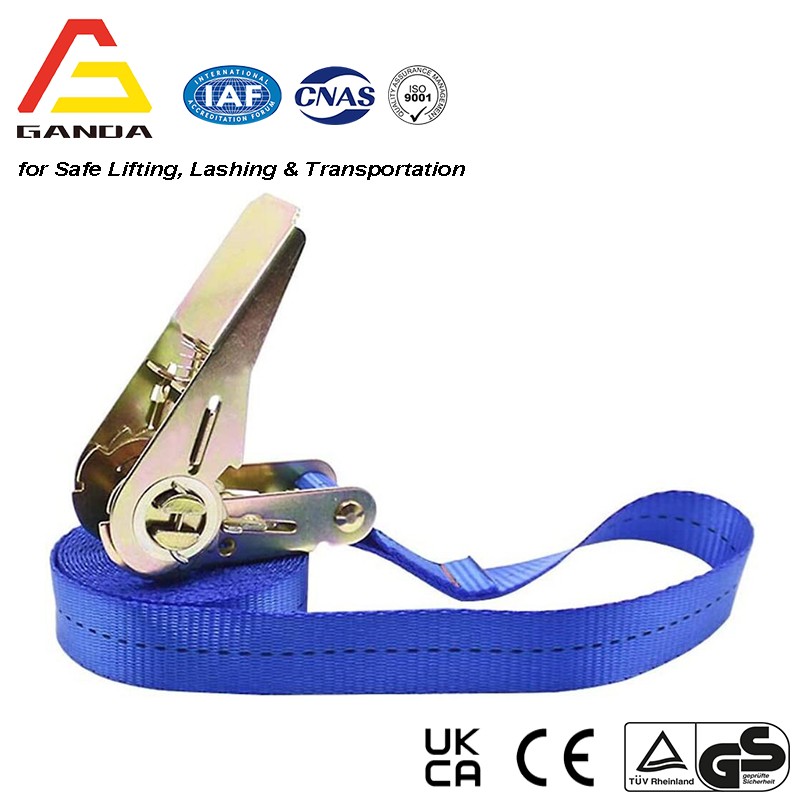

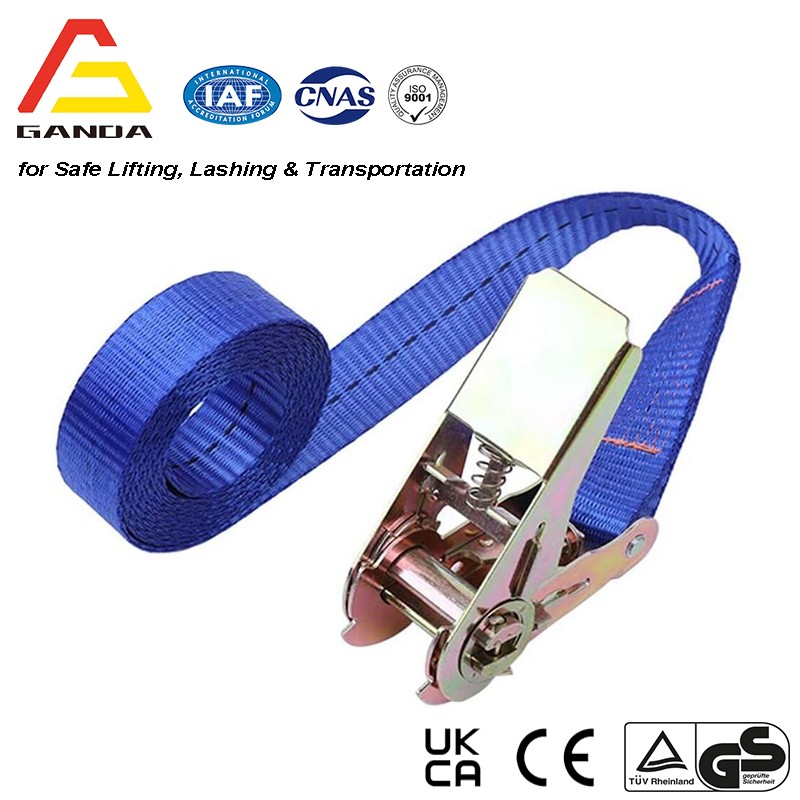

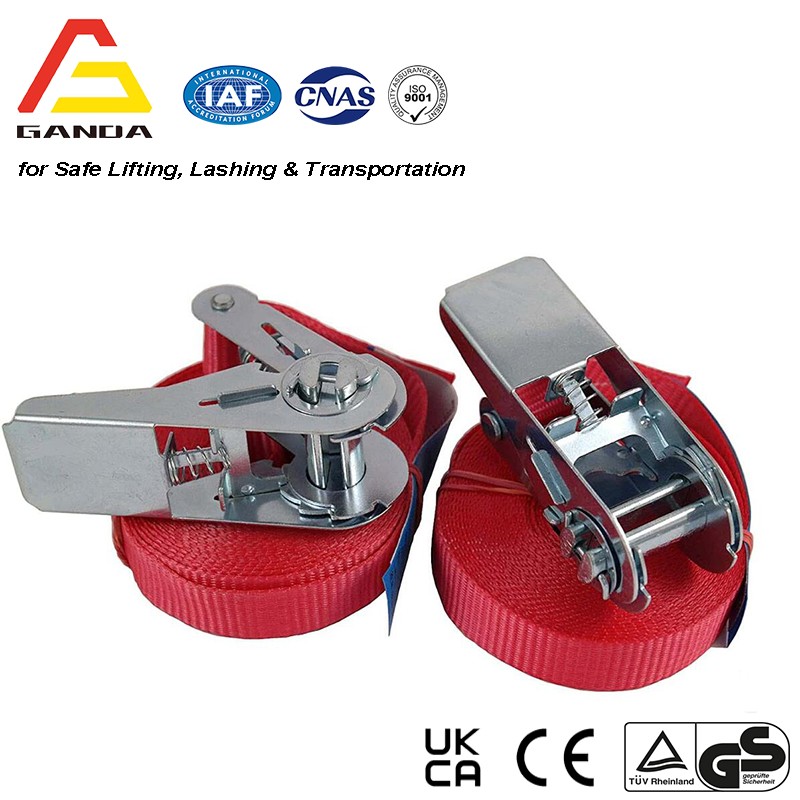

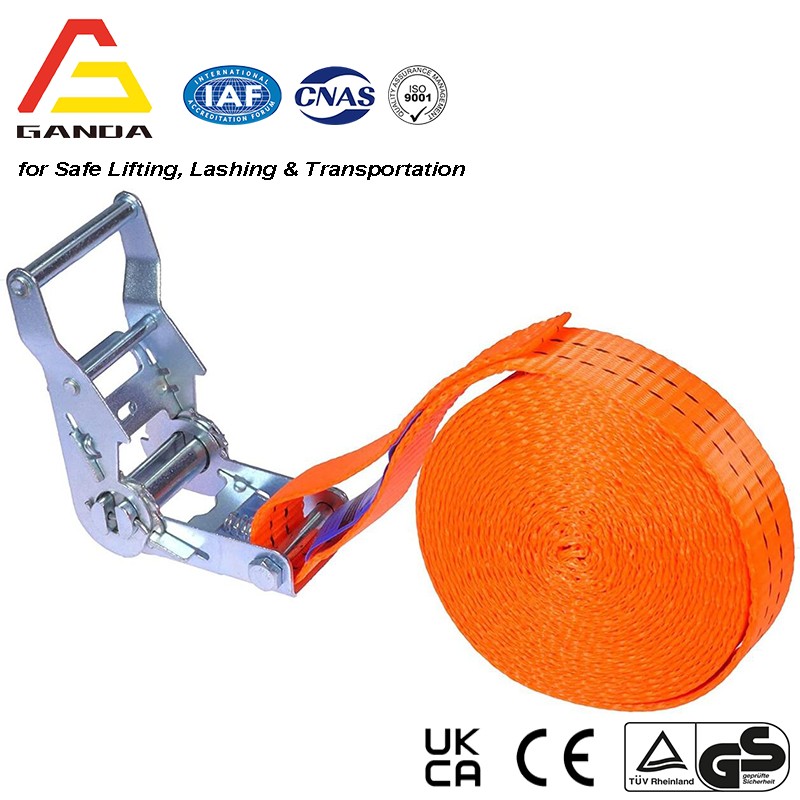

Ratchet Tie Down 1,200lbs

Standard: ASTM B.30.9
Width: 1"
Breaking Strength: 1,200lbs or 2,000lbs
Length: 8', 12', 16'

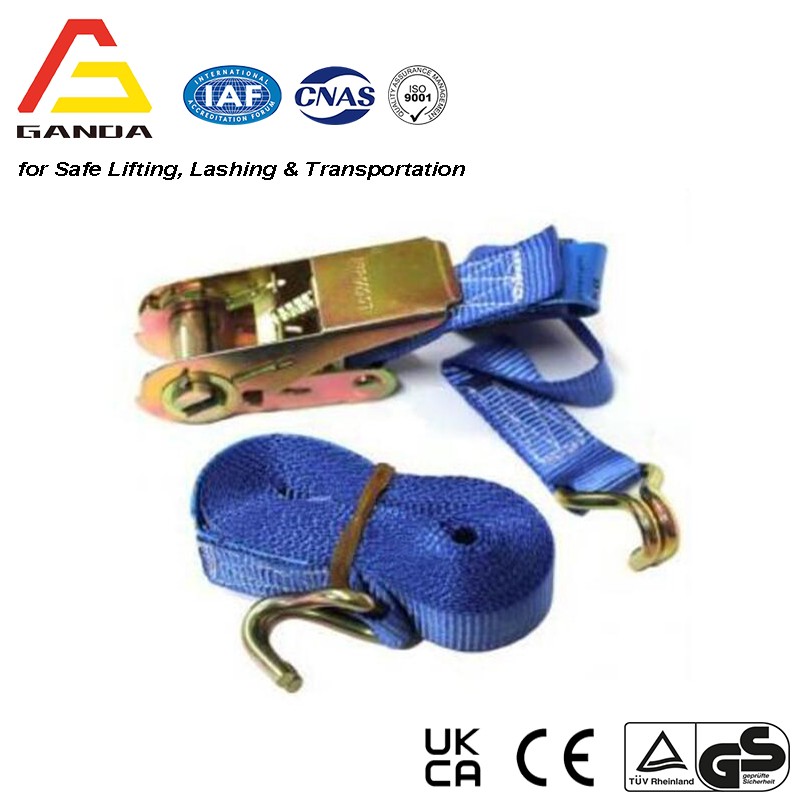

Endfitting: Doubel J Hook, S Hook, Endless
Color: Yellow, Blue, Red, Black
Low Elongation

Ratchet Tie Down , Ratchet Straps to ASTM B.30.9( America market)

**100% high tenacity polyester of lashing strap
**Low elongation
**Popular color of strap:orange,blue,yellow,red,black
**Width available:1" to 4"
**Breaking strength scope:1500Ibs-20000Ibs
Cautions
-Never use a lashing as a lifting sling.
-Never twist a webbing.
-Protect the webbing from sharp edges by suach as protective sleeves.
-Chemical active environments ca effect the strength of sling.
-Polyester is resistant to acids, but affetected by concentrared bases.
-Temperature range of -40 to +100
REMARKS:
*Part number :width-one or two pc-end fitting
*One pc means:endless,without end fitting
*Various end fitting available,see next page

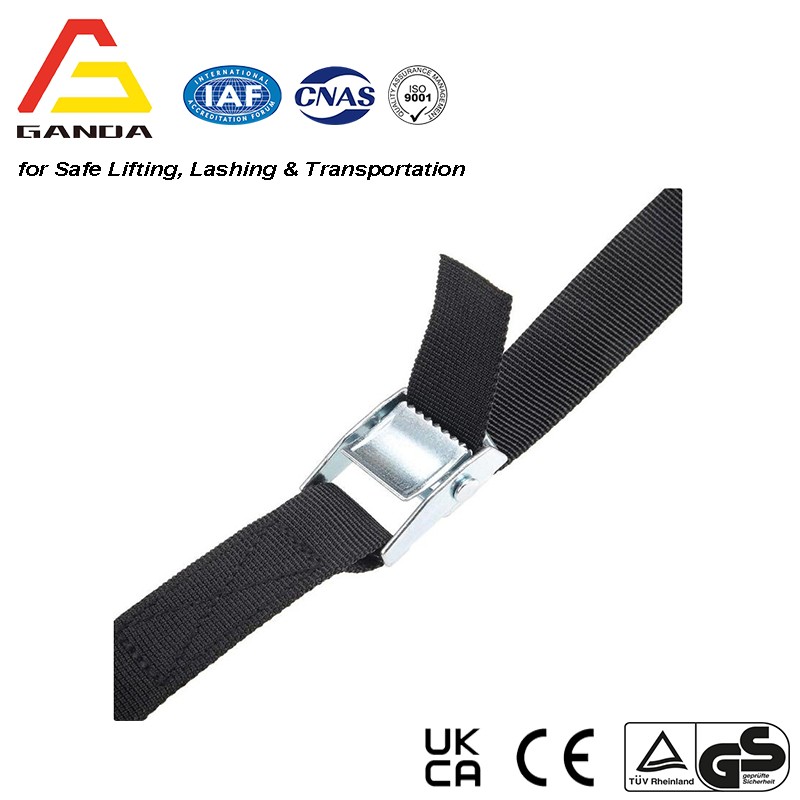

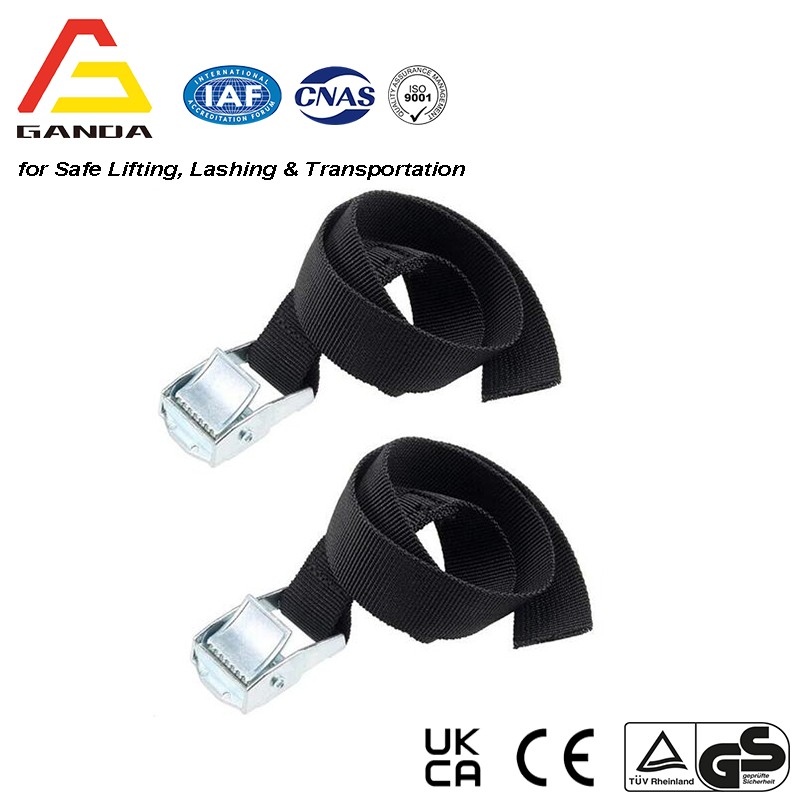

*Cam buckle only for 1" items
Ratchet Lashings are used for tying down loads whilst transporting , shifting or moving them. They have replaced traditional jute ropes, chains and wires used for transportation and for a variety of other applications.
The main advantages of ratchet lashings are :
1. Load restraint using a tensioning device (ratchet)
2. Effective and safe control of loads whilst transportation
3. Extremely quick and efficient tie down and release of load thus saving time.
4. No damage to the load being tied down.

They are available in a large variety of configurations of different ratchets of various capacities and end fittings. Pictures
shown here are only indicative and not exhaustive.

Width	M. B. S.	END FITTINGS	STANDARD LENGTH
2"	10, 000lbs	Double J Hook	27'
2"	10, 000lbs	Double J Hook	30'
2"	10, 000lbs	Flat Hook	27'
2"	10, 000lbs	Flat Hook	30'
2"	10, 000lbs	Single J Hook	27'
2"	10, 000lbs	Single J Hook	30'
3"	16, 200lbs	Double J Hook	27'
4"	16, 200lbs	Double J Hook	30'
3"	16, 200lbs	Flat Hook	27'
4"	16, 200lbs	Flat Hook	30'
1.5"	3.000lbs	Double J Hook	12' / 16' /20'
1.5"	3.000lbs	E track Fitting	12' / 16' /20'
1"	1,200lbs	Double J Hook	8' / 12'/ 16'
1"	1,200lbs	S Hook	8' / 12'/ 16'
1"	2,000lbs	Double J Hook	8' / 12'/ 16'
1"	2,000lbs	S Hook	500KG
